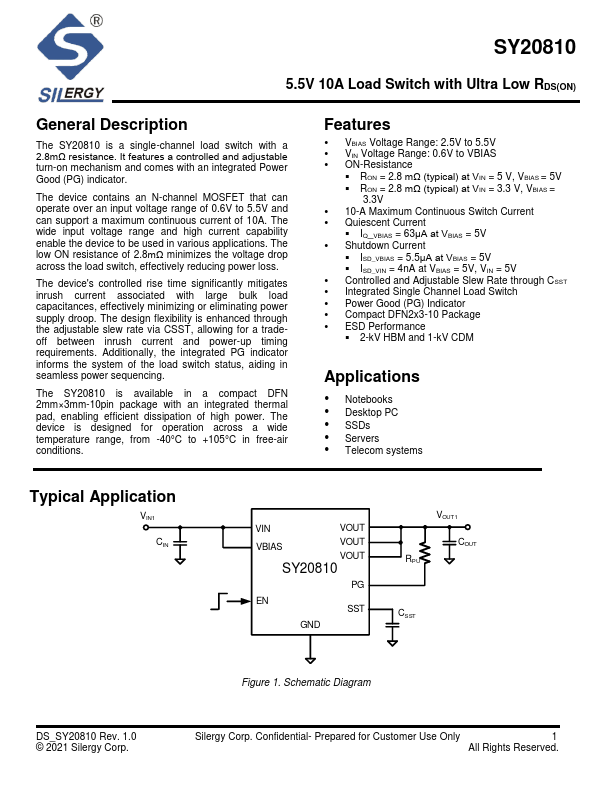

SY20810 Overview
Description
The SY20810 is a single-channel load switch with a 2.8mΩ resistance. It features a controlled and adjustable turn-on mechanism and comes with an integrated Power Good (PG) indicator.
Key Features
- RON = 2.8 mΩ (typical) at VIN = 5 V, VBIAS = 5V
- RON = 2.8 mΩ (typical) at VIN = 3.3 V, VBIAS = 3.3V 10-A Maximum Continuous Switch Current Quiescent Current
- IQ_VBIAS = 63μA at VBIAS = 5V Shutdown Current
- ISD_VBIAS = 5.5μA at VBIAS = 5V
- 2-kV HBM and 1-kV CDM
