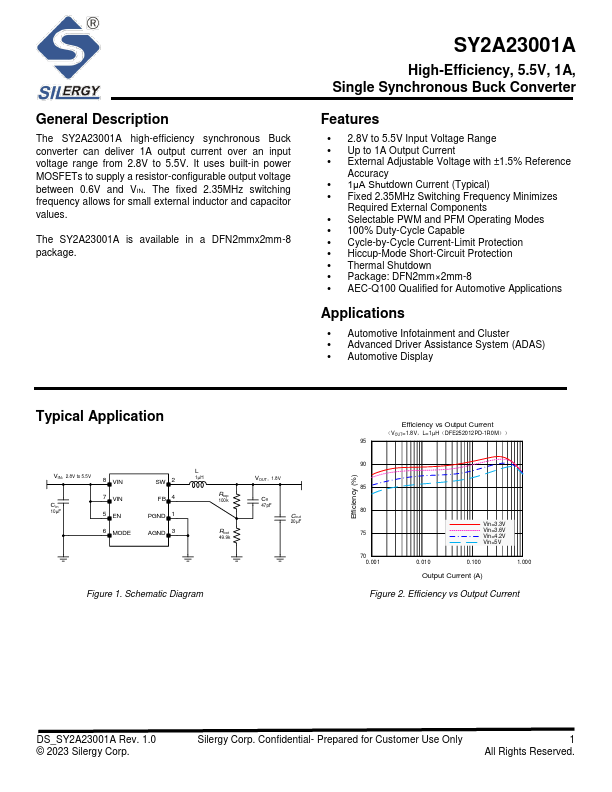

SY2A23001A Datasheet Summary
General Description
The SY2A23001A high-efficiency synchronous Buck converter can deliver 1A output current over an input voltage range from 2.8V to 5.5V. It uses built-in power MOSFETs to supply a resistor-configurable output voltage between 0.6V and VIN. The fixed 2.35MHz switching frequency allows for small external inductor and capacitor values.
The SY2A23001A is available in a DFN2mmx2mm-8 package.
High-Efficiency, 5.5V, 1A, Single Synchronous Buck Converter
Features
- 2.8V to 5.5V Input Voltage Range
- Up to 1A Output Current
- External Adjustable Voltage with ±1.5% Reference
Accuracy
- 1μA Shutdown Current (Typical)
- Fixed 2.35MHz Switching Frequency Minimizes
Required External ponents
- Selectable PWM and PFM Operating Modes
- 100% Duty-Cycle Capable
- Cycle-by-Cycle Current-Limit Protection
- Hiccup-Mode Short-Circuit Protection
- Thermal Shutdown
- Package: DFN2mm×2mm-8
- AEC-Q100 Qualified for Automotive Applications
Applications
- Automotive Infotainment and Cluster
- Advanced Driver Assistance System (ADAS)
- Automotive Display
Typical Application
VIN：2.8V to 5.5V
8 VIN
7 VIN
Cin
10μF
5...
