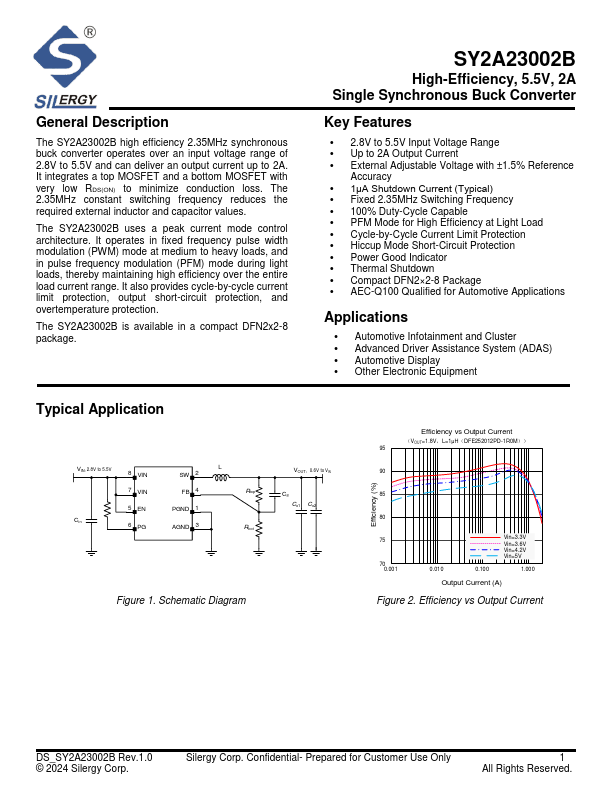

Datasheet Summary
General Description
The SY2A23002B high efficiency 2.35MHz synchronous buck converter operates over an input voltage range of 2.8V to 5.5V and can deliver an output current up to 2A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss. The 2.35MHz constant switching frequency reduces the required external inductor and capacitor values.
The SY2A23002B uses a peak current mode control architecture. It operates in fixed frequency pulse width modulation (PWM) mode at medium to heavy loads, and in pulse frequency modulation (PFM) mode during light loads, thereby maintaining high efficiency over the entire load current range. It also provides cycle-by-cycle current limit protection, output short-circuit protection, and overtemperature protection.
The SY2A23002B is available in a pact DFN2x2-8 package.
High-Efficiency, 5.5V, 2A Single Synchronous Buck Converter
Key Features
- 2.8V to 5.5V Input Voltage Range
- Up to 2A Output Current
- External Adjustable Voltage with ±1.5% Reference
Accuracy
- 1μA Shutdown Current (Typical)
- Fixed 2.35MHz Switching Frequency
- 100% Duty-Cycle Capable
- PFM Mode for High Efficiency at Light Load
- Cycle-by-Cycle Current Limit Protection
- Hiccup Mode Short-Circuit Protection
- Power Good Indicator
- Thermal Shutdown
- pact DFN2×2-8 Package
- AEC-Q100 Qualified for Automotive Applications
Applications
- Automotive Infotainment and Cluster
- Advanced Driver Assistance System (ADAS)
- Automotive Display
- Other Electronic Equipment
Typical Application
VIN: 2.8V to 5.5V Cin
8 VIN 7 VIN 5 EN 6 PG
L SW 2
FB...
