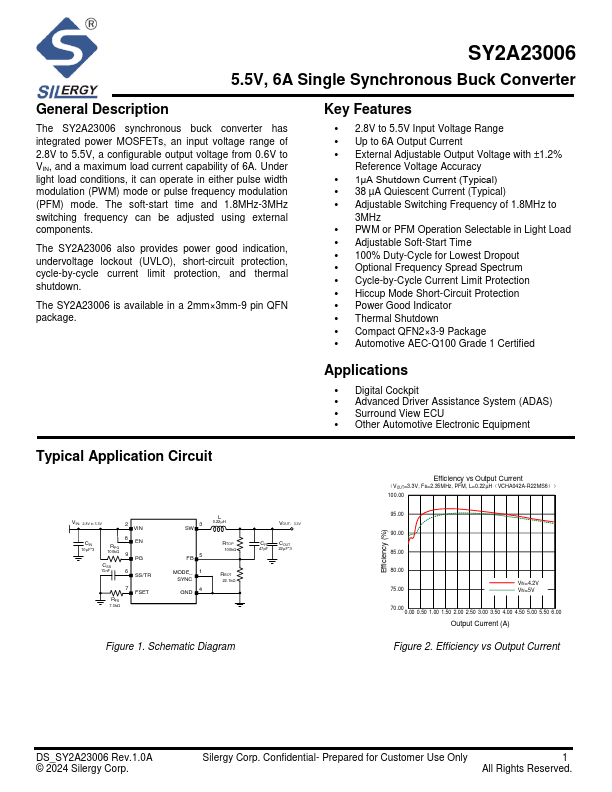

Datasheet Summary
5.5V, 6A Single Synchronous Buck Converter
General Description
The SY2A23006 synchronous buck converter has integrated power MOSFETs, an input voltage range of 2.8V to 5.5V, a configurable output voltage from 0.6V to VIN, and a maximum load current capability of 6A. Under light load conditions, it can operate in either pulse width modulation (PWM) mode or pulse frequency modulation (PFM) mode. The soft-start time and 1.8MHz-3MHz switching frequency can be adjusted using external ponents.
The SY2A23006 also provides power good indication, undervoltage lockout (UVLO), short-circuit protection, cycle-by-cycle current limit protection, and thermal shutdown.
The SY2A23006 is available in a 2mm×3mm-9 pin QFN package.
Key Features
- 2.8V to 5.5V Input Voltage Range
- Up to 6A Output Current
- External Adjustable Output Voltage with ±1.2%
Reference Voltage Accuracy
- 1μA Shutdown Current (Typical)
- 38 µA Quiescent Current (Typical)
- Adjustable Switching Frequency of 1.8MHz to
3MHz
- PWM or PFM Operation Selectable in Light Load
- Adjustable Soft-Start Time
- 100% Duty-Cycle for Lowest Dropout
- Optional Frequency Spread Spectrum
- Cycle-by-Cycle Current Limit Protection
- Hiccup Mode Short-Circuit Protection
- Power Good Indicator
- Thermal Shutdown
- pact QFN2×3-9 Package
- Automotive AEC-Q100 Grade 1 Certified
Applications
- Digital Cockpit
- Advanced Driver Assistance System (ADAS)
- Surround View ECU
- Other Automotive Electronic Equipment

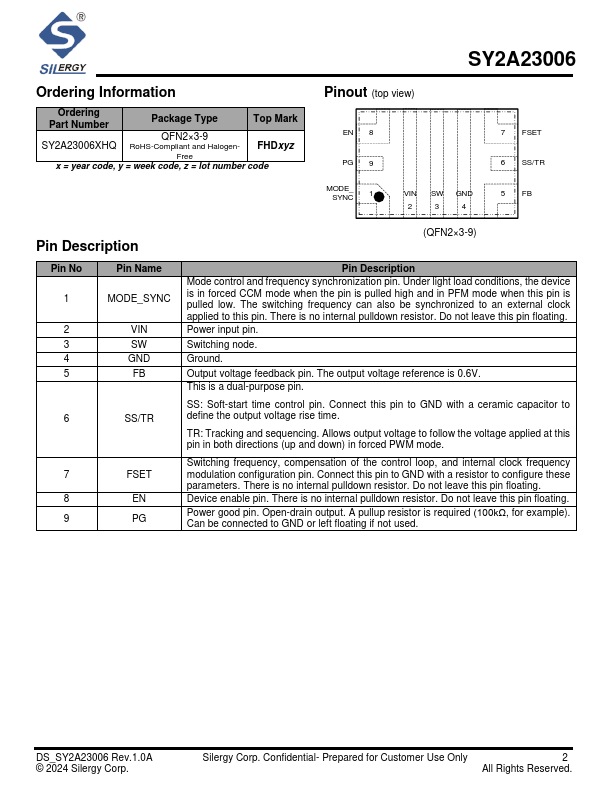

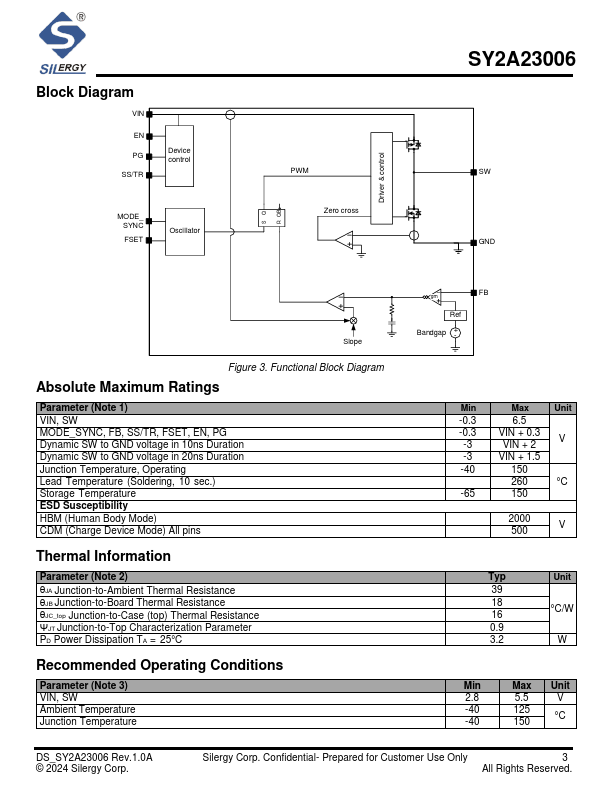

Typical Application...
