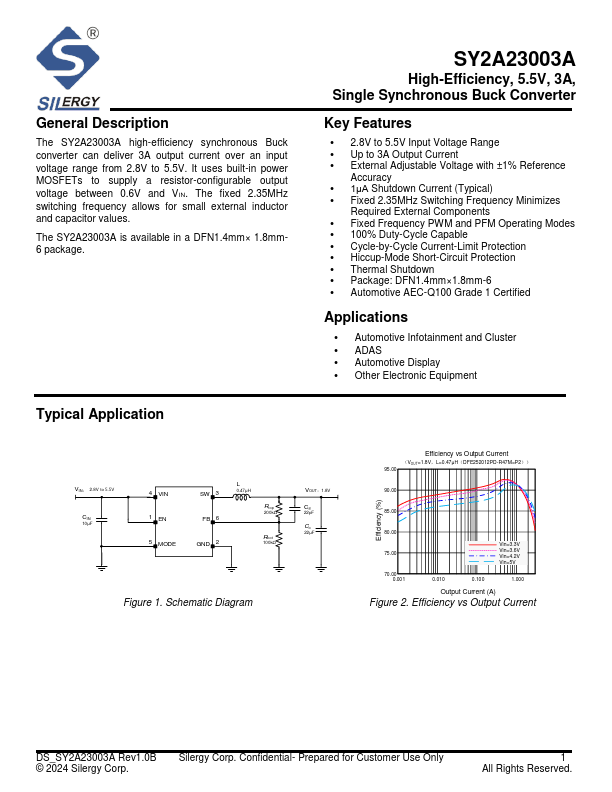

SY2A23003A Datasheet Summary
General Description
The SY2A23003A high-efficiency synchronous Buck converter can deliver 3A output current over an input voltage range from 2.8V to 5.5V. It uses built-in power MOSFETs to supply a resistor-configurable output voltage between 0.6V and VIN. The fixed 2.35MHz switching frequency allows for small external inductor and capacitor values. The SY2A23003A is available in a DFN1.4mm× 1.8mm6 package.
Typical Application
High-Efficiency, 5.5V, 3A, Single Synchronous Buck Converter
Key Features
- 2.8V to 5.5V Input Voltage Range
- Up to 3A Output Current
- External Adjustable Voltage with ±1% Reference
Accuracy
- 1μA Shutdown Current (Typical)
- Fixed 2.35MHz Switching Frequency Minimizes
Required External ponents
- Fixed Frequency PWM and PFM Operating Modes
- 100% Duty-Cycle Capable
- Cycle-by-Cycle Current-Limit Protection
- Hiccup-Mode Short-Circuit Protection
- Thermal Shutdown
- Package: DFN1.4mm×1.8mm-6
- Automotive AEC-Q100 Grade 1 Certified
Applications
- Automotive Infotainment and Cluster
- ADAS
- Automotive Display
- Other Electronic Equipment
VIN： 2.8V to 5.5V
CIN
10μF
4 VIN 1 EN 5 MODE
SW 3 FB 6 GND...
