SLM27523 - Dual-Channel High-Speed Low-Side Gate Driver

Features

  • The SLM2752x family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SLM2752x can source and sink high peakcurrent pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18 ns. The SLM2752x provides 4.5 A source, 5.5 A sink peak drive current capability at 12V VDD supply.

📥 Download Datasheet

Datasheet preview – SLM27523

Datasheet Details

Part number SLM27523
Manufacturer Sillumin
File Size 844.92 KB
Description Dual-Channel High-Speed Low-Side Gate Driver
Datasheet download datasheet SLM27523 Datasheet

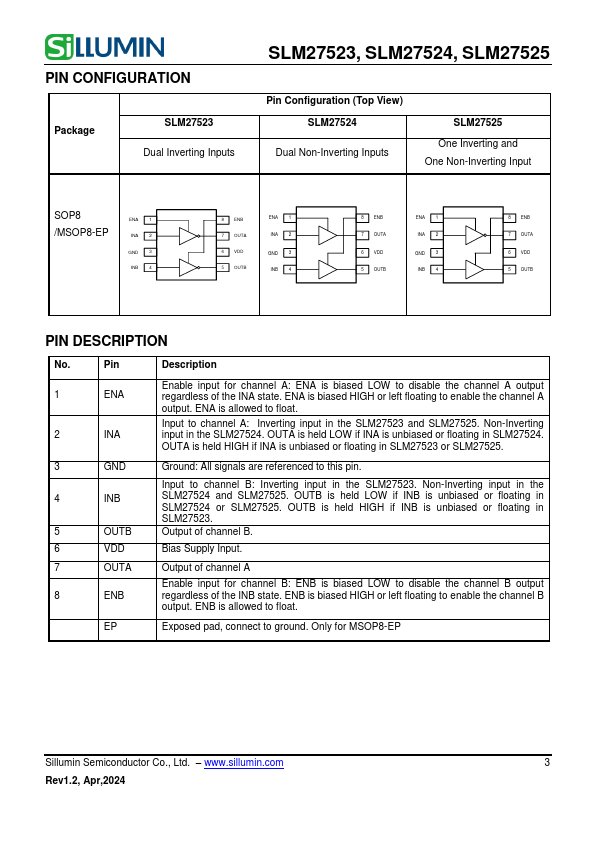

Additional preview pages of the SLM27523 datasheet.

📁 Similar Datasheet

  • SLM2012 - Multilayer Power Inductor (Sunltech)
  • SLM23 - Surface Mount LEDs (Rohm)
  • SLM23xx - Molded Package Chip LEDs (Rohm)
  • SLM245 - High Luminance Type Surface Mount LEDs (Rohm)
  • SLM2520 - Multilayer Power Inductor (Sunltech)
  • SLM2575 - 1 Amp DC-to-DC MiniConverters (Semtech)
  • SLM-1251 - High Luminance Type Surface Mount LEDs (Rohm)
  • SLM-13 - Surface Mount LEDs (Rohm)
  • SLM-13xx - Molded Package Chip LEDs (Rohm)
  • SLM-20T - High Linearity Low Noise Amplifier Module (Sirenza Microdevices)
Other Datasheets by Sillumin
  • SLM27524 - Dual-Channel High-Speed Low-Side Gate Driver
  • SLM27525 - Dual-Channel High-Speed Low-Side Gate Driver
  • SLM27526 - Dual-Channel High-Speed Low-Side Gate Driver
  • SLM27511 - Low-Side Gate Driver
  • SLM27517 - Low-Side Gate Driver
  • SLM27211 - High-Frequency High-Side and Low-Side Driver
  • SLM2001S - 200V Half Bridge Driver
  • SLM2003S - 200V Half-Bridge Driver

Full PDF Text Transcription

Click to expand full text

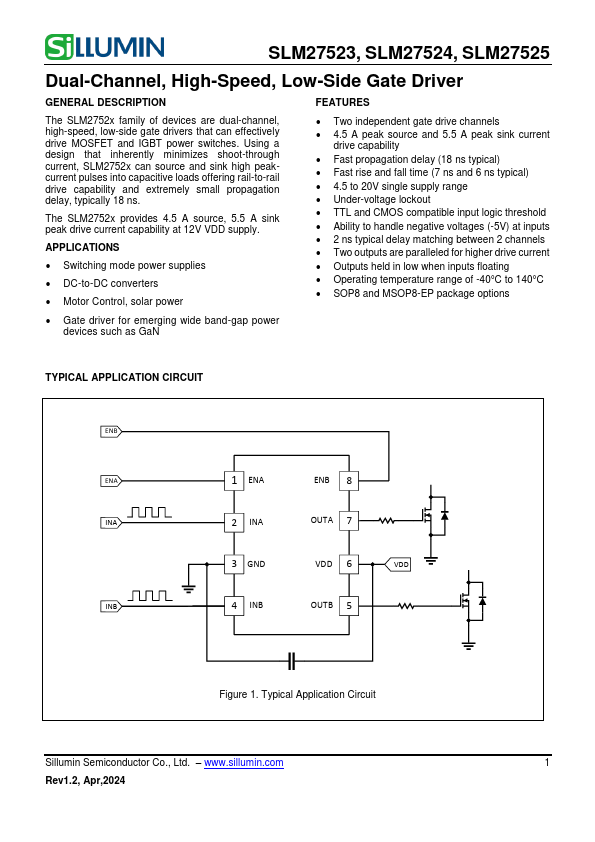

SLM27523, SLM27524, SLM27525 Dual-Channel, High-Speed, Low-Side Gate Driver GENERAL DESCRIPTION FEATURES The SLM2752x family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SLM2752x can source and sink high peakcurrent pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18 ns. The SLM2752x provides 4.5 A source, 5.5 A sink peak drive current capability at 12V VDD supply. APPLICATIONS  Switching mode power supplies  DC-to-DC converters  Motor Control, solar power  Two independent gate drive channels  4.5 A peak source and 5.
