SLM27524 - Dual-Channel High-Speed Low-Side Gate Driver

This page provides the datasheet information for the SLM27524, a member of the SLM27523 Dual-Channel High-Speed Low-Side Gate Driver family.

Datasheet Summary

Features

  • The SLM2752x family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SLM2752x can source and sink high peakcurrent pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18 ns. The SLM2752x provides 4.5 A source, 5.5 A sink peak drive current capability at 12V VDD supply.

📥 Download Datasheet

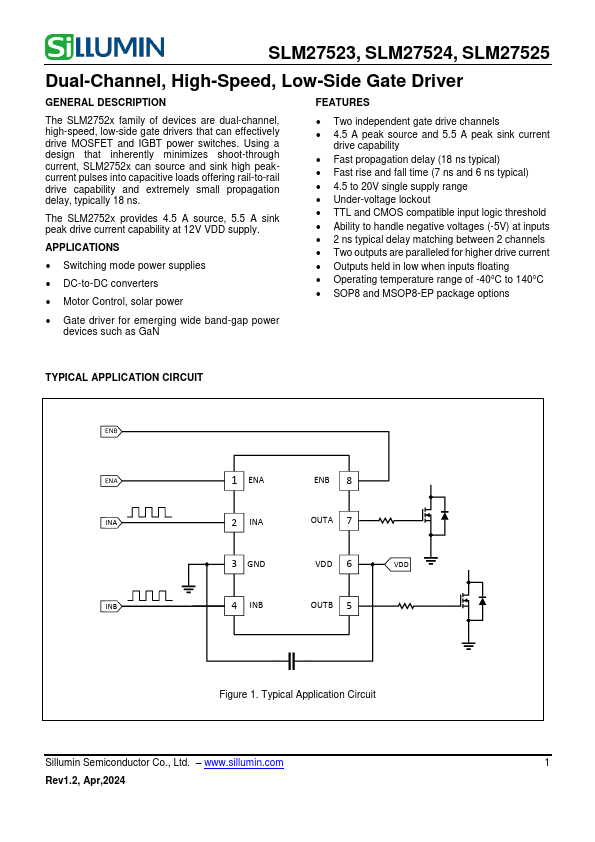

Datasheet preview – SLM27524

Datasheet Details

Part number SLM27524
Manufacturer Sillumin
File Size 844.92 KB
Description Dual-Channel High-Speed Low-Side Gate Driver
