Sillumin SLM27526
The SLM27526 family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. The SLM27526 provides 4.5 A source, 5.5 A sink peak drive current capability at 12V VDD supply.| Part No. | SLM27526 |
|---|---|
| Datasheet | SLM27526 Download |
| Manufacturer |  Sillumin |
| Description | Dual-Channel High-Speed Low-Side Gate Driver |
| Buy | Stock & Price |
GENERAL DESCRIPTION
FEATURES
Using a design that inherently minimizes shoot-through current, SLM27526 can source and sink high peakcurrent pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18 ns.APPLICATIONS
● Switching mode power supplies● DC-to-DC converters
● Motor Control, solar power
● Two independent gate drive channels
● 4.5 A peak source and 5.5 A peak sink current drive capability
● Fast propagation delay (18 ns typical)
● Fast rise and fall time (7 ns and 6 ns typical)
● 4.5 to 20V single supply range
● Under-voltage lockout
● TTL and CMOS compatible input logic threshold
● Ability to handle negative voltages (-5V) at inputs
● 2 ns typical delay matching between 2 channels
● Two outputs are paralleled for higher drive current
● Outputs held in low when inputs floating
● Operating temperature range of -40°C to 140°C
● DFN3x3-8 package

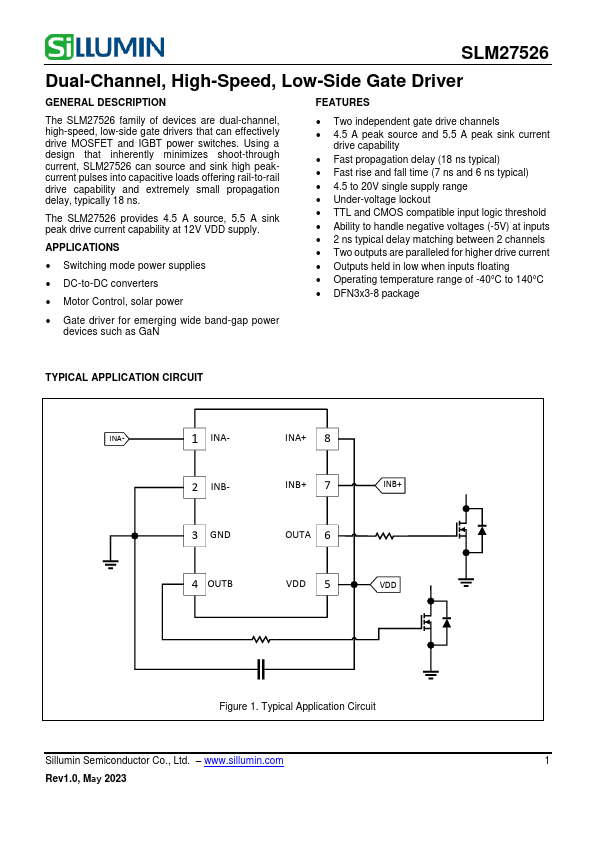

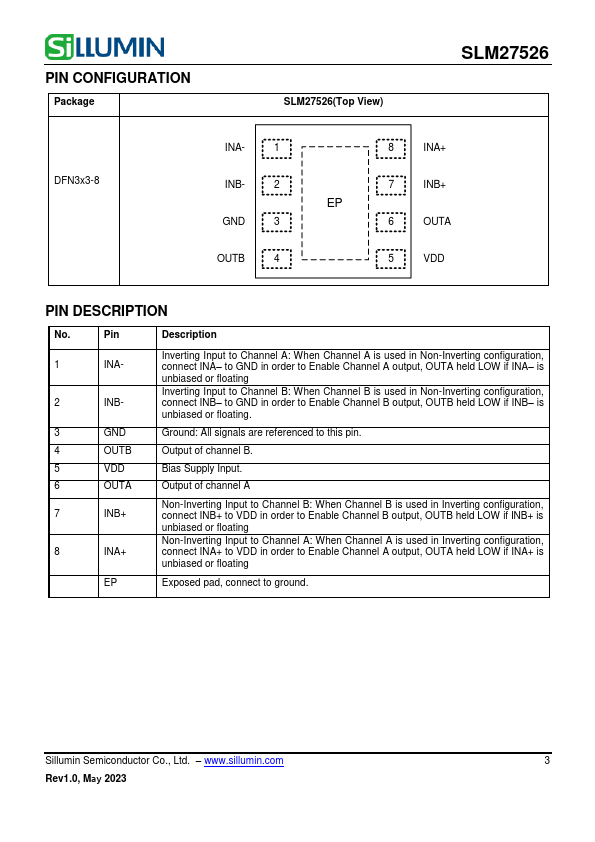

● Gate driver for emerging wide band-gap power devices such as GaN TYPICAL APPLICATION CIRCUIT INA- 1 INA- INA+ 8 2 INB- INB+ 7 INB+ 3 GND OUTA 6 4 OUTB VDD 5 VDD Figure 1.
