SLM27525 - Dual-Channel High-Speed Low-Side Gate Driver

Download the SLM27525 datasheet PDF. This datasheet also covers the SLM27523 variant, as both devices belong to the same dual-channel high-speed low-side gate driver family and are provided as variant models within a single manufacturer datasheet.

Key Features

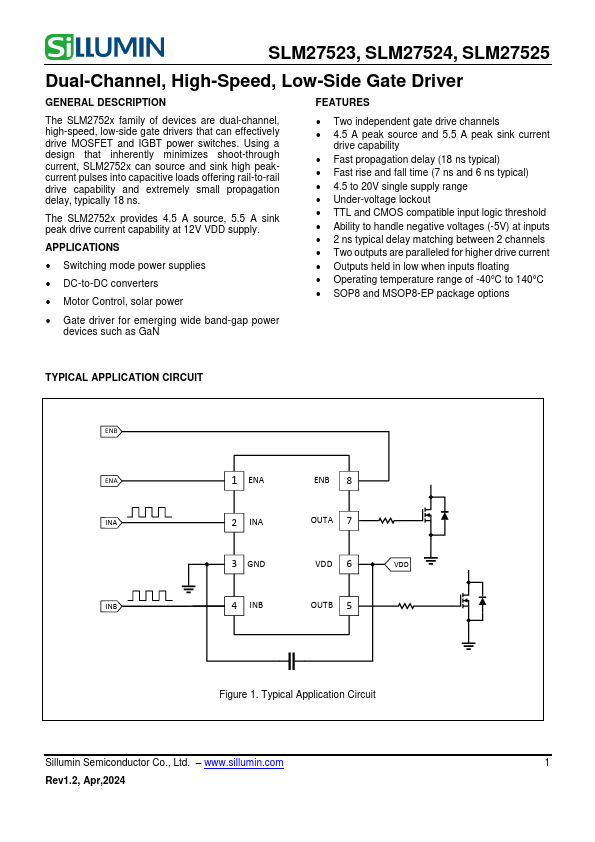

  • The SLM2752x family of devices are dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SLM2752x can source and sink high peakcurrent pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18 ns. The SLM2752x provides 4.5 A source, 5.5 A sink peak drive current capability at 12V VDD supply.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SLM27523-Sillumin.pdf) that lists specifications for multiple related part numbers.

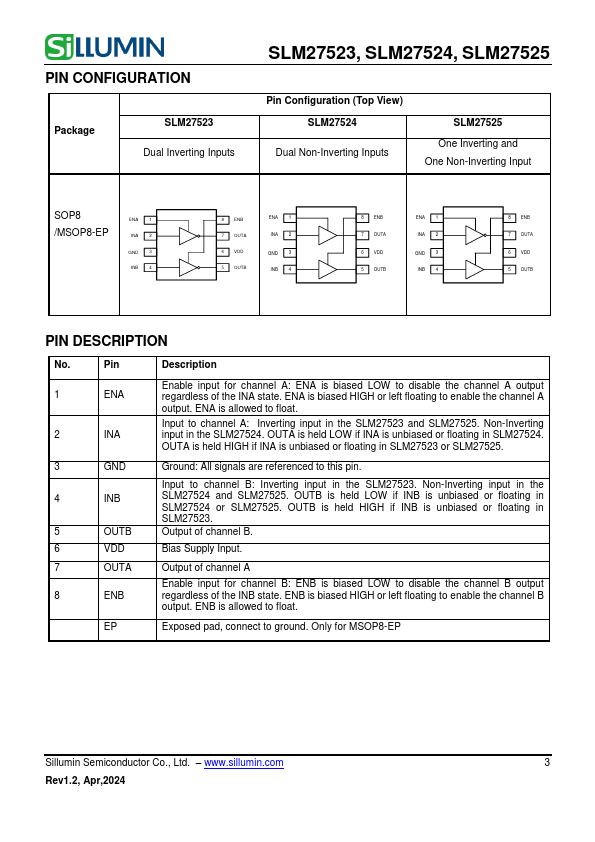

Datasheet Details

Part number SLM27525
Manufacturer Sillumin
File Size 844.92 KB
Description Dual-Channel High-Speed Low-Side Gate Driver
Datasheet download datasheet SLM27525 Datasheet
