SiLM9409 - Forward/Reverse Low Saturation Voltage Motor Driver

General Description

The SiLM9409 is a 2-channel low saturation voltage forward/reverse motor driver IC.

It is optimal for motor drive in 12V and 24V system products and can drive a stepper motor in Full-step.

Key Features

  • DMOS output transistor adoption (upper and lower total Rdson = 0.9 Ω Typ. ).
  • VCC (Max) = 26V, IO (Max) = 1.2A, IO (RMS) = 0.8A.
  • 5V to 26V operating supply voltage range (The control system power supply is unnecessary. ).
  • The compact package (SSOP10) is adopted.

📥 Download Datasheet

Datasheet Details

Part number SiLM9409
Manufacturer Sillumin
File Size 681.01 KB
Description Forward/Reverse Low Saturation Voltage Motor Driver
Datasheet download datasheet SiLM9409 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SIL05-1A72-71D Single-In-Line Reed Relays MEDER
SIL05-1A72-71L Relays MEDER
SIL05-1A72-74L Relays MEDER
SIL05N06 N-CHANNEL MOSFET MCC
SIL05N06A N-Channel Power MOSFET MCC

Other Datasheets by Sillumin

Part Number Description
SiLM94108-AQ Eight Channel Half Bridge Drivers
SiLM94108C-AQ Eight Channel Half Bridge Drivers
SiLM94112-AQ Twelve Channel Half Bridge Drivers
SiLM2660 Battery Pack Front-End Charge/Discharge High-Side NFET Driver
SiLM2661 Battery Pack Front-End Charge/Discharge High-Side NFET Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

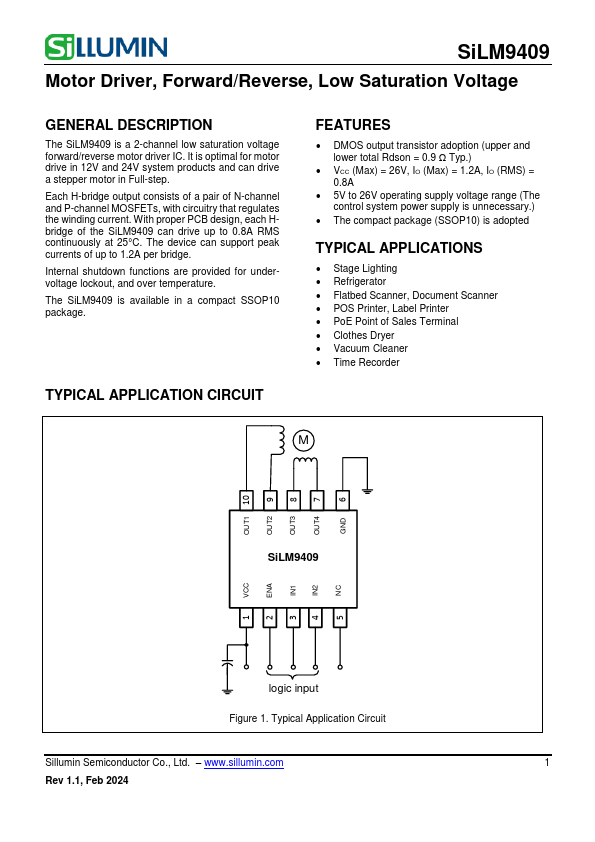

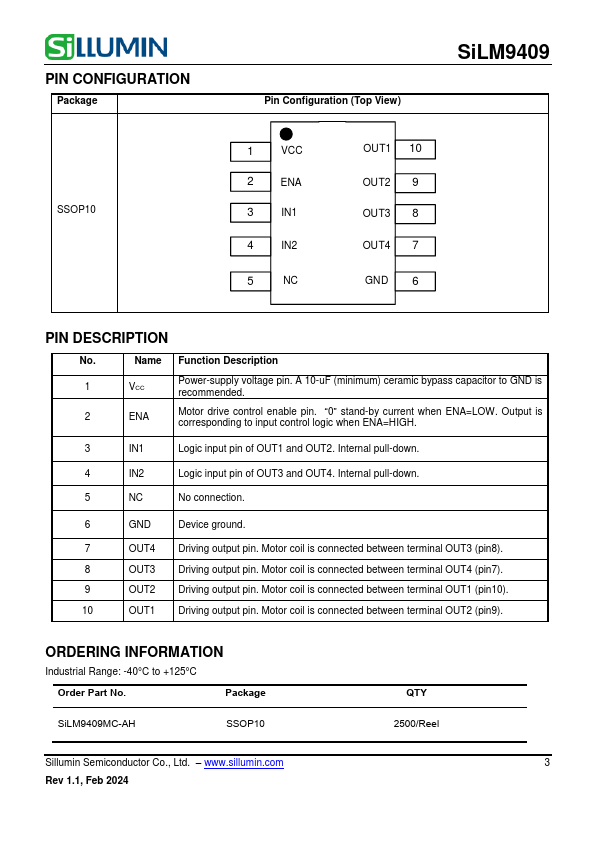

SiLM9409 Motor Driver, Forward/Reverse, Low Saturation Voltage GENERAL DESCRIPTION The SiLM9409 is a 2-channel low saturation voltage forward/reverse motor driver IC. It is optimal for motor drive in 12V and 24V system products and can drive a stepper motor in Full-step. Each H-bridge output consists of a pair of N-channel and P-channel MOSFETs, with circuitry that regulates the winding current. With proper PCB design, each Hbridge of the SiLM9409 can drive up to 0.8A RMS continuously at 25°C. The device can support peak currents of up to 1.2A per bridge. Internal shutdown functions are provided for undervoltage lockout, and over temperature. The SiLM9409 is available in a compact SSOP10 package.
