SiLM2661 - Battery Pack Front-End Charge/Discharge High-Side NFET Driver

Download the SiLM2661 datasheet PDF. This datasheet also covers the SiLM2660 variant, as both devices belong to the same battery pack front-end charge/discharge high-side nfet driver family and are provided as variant models within a single manufacturer datasheet.

General Description

The SiLM2660/SiLM2661 is a low-power, high-side N-channel FET driver for battery charge/discharge system control.

A high-side control avoids ground disconnection in the system and allows continuous communication between the battery pack and host system.

Key Features

  • High side NFET driver with fast turn-on and turnoff times for battery protection.
  • Pre-charge PFET driver provides a currentlimited pre-charge function for depleted cell-pack (only for SiLM2660).
  • Independent enable control for charging and discharging.
  • Scalable external capacitor-based charge pump to accommodate a different range of FETs in parallel.
  • High voltage tolerant (100 V absolute maximum).
  • Internal switch to enable pack-voltage sensin.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SiLM2660-Sillumin.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SiLM2661
Manufacturer Sillumin
File Size 434.53 KB
Description Battery Pack Front-End Charge/Discharge High-Side NFET Driver
Datasheet download datasheet SiLM2661 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SIL05-1A72-71D Single-In-Line Reed Relays MEDER
SIL05-1A72-71L Relays MEDER
SIL05-1A72-74L Relays MEDER
SIL05N06 N-CHANNEL MOSFET MCC
SIL05N06A N-Channel Power MOSFET MCC

Other Datasheets by Sillumin

Part Number Description
SiLM2660 Battery Pack Front-End Charge/Discharge High-Side NFET Driver
SiLM27273 Single-Channel High-Speed Low-Side Gate Driver
SiLM27511H Low-Side Gate Driver
SiLM27517H-AQ Single-Channel High-Speed Low-Side Gate Driver
SiLM27519 Single-Channel High-Speed Low-Side Gate Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

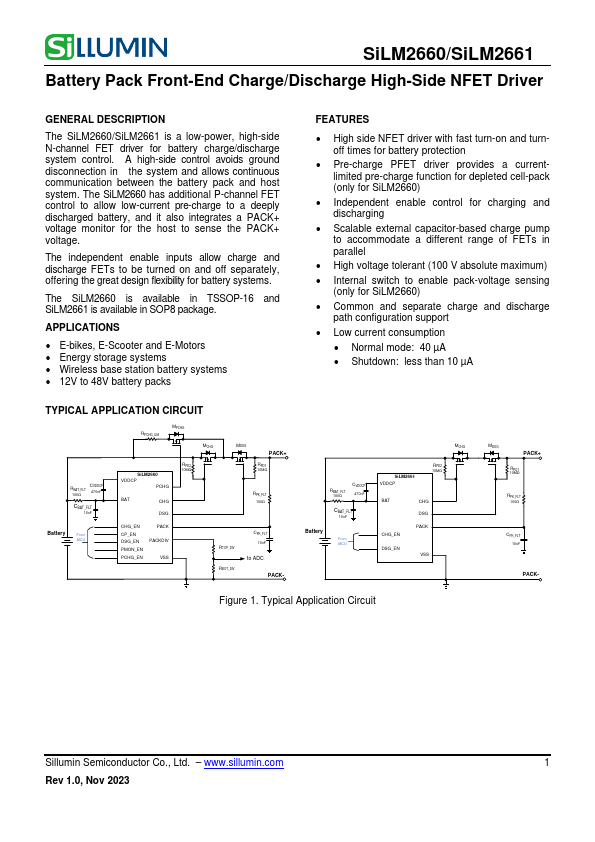

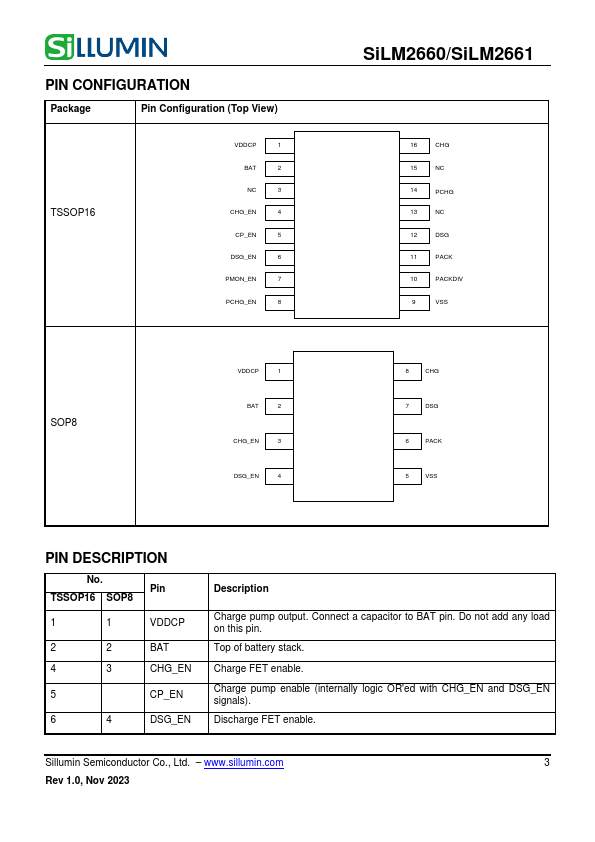

SiLM2660/SiLM2661 Battery Pack Front-End Charge/Discharge High-Side NFET Driver GENERAL DESCRIPTION The SiLM2660/SiLM2661 is a low-power, high-side N-channel FET driver for battery charge/discharge system control. A high-side control avoids ground disconnection in the system and allows continuous communication between the battery pack and host system. The SiLM2660 has additional P-channel FET control to allow low-current pre-charge to a deeply discharged battery, and it also integrates a PACK+ voltage monitor for the host to sense the PACK+ voltage. The independent enable inputs allow charge and discharge FETs to be turned on and off separately, offering the great design flexibility for battery systems. The SiLM2660 is available in TSSOP-16 and SiLM2661 is available in SOP8 package.
