SiLM27273 - Single-Channel High-Speed Low-Side Gate Driver

Datasheet Summary

Description

The SiLM27273 is a single-channel, high-speed, low-side gate driver device which can effectively drive MOSFET and IGBT power switches.

Features

  • Low-cost gate-driver device offering superior replacement of NPN and PNP discrete solutions.
  • 4 A peak source and 5 A peak sink current.
  • Fast propagation delay (18 ns typical).
  • Fast rise and fall time (7 ns typical).
  • 4.5 to 20V single supply range.
  • Under-voltage lockout.
  • TTL and CMOS compatible input logic threshold.
  • Output held low when input pins are floating.
  • Operating temperature range of -40℃ to 140℃.
  • SOT23-5 package.

📥 Download Datasheet

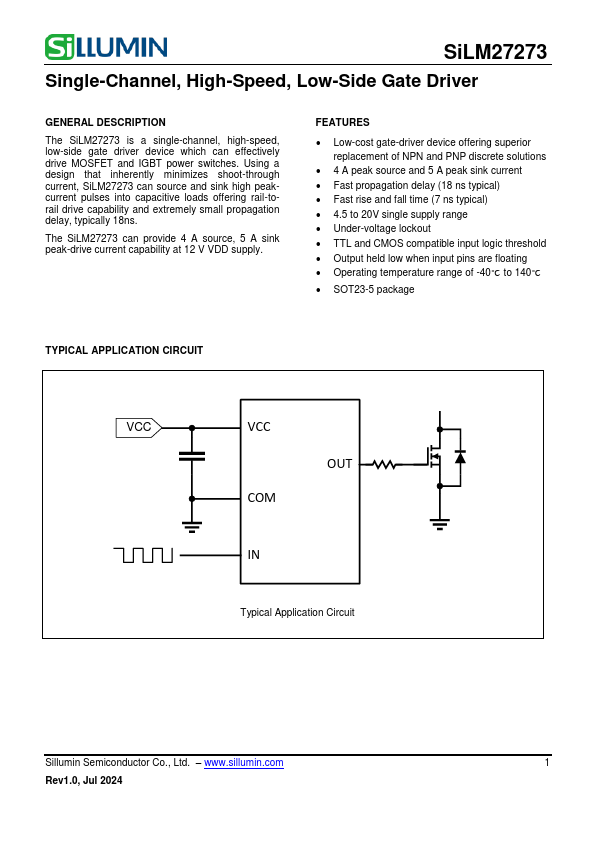

Datasheet preview – SiLM27273

Datasheet Details

Part number SiLM27273
Manufacturer Sillumin
File Size 466.11 KB
Description Single-Channel High-Speed Low-Side Gate Driver
Datasheet download datasheet SiLM27273 Datasheet

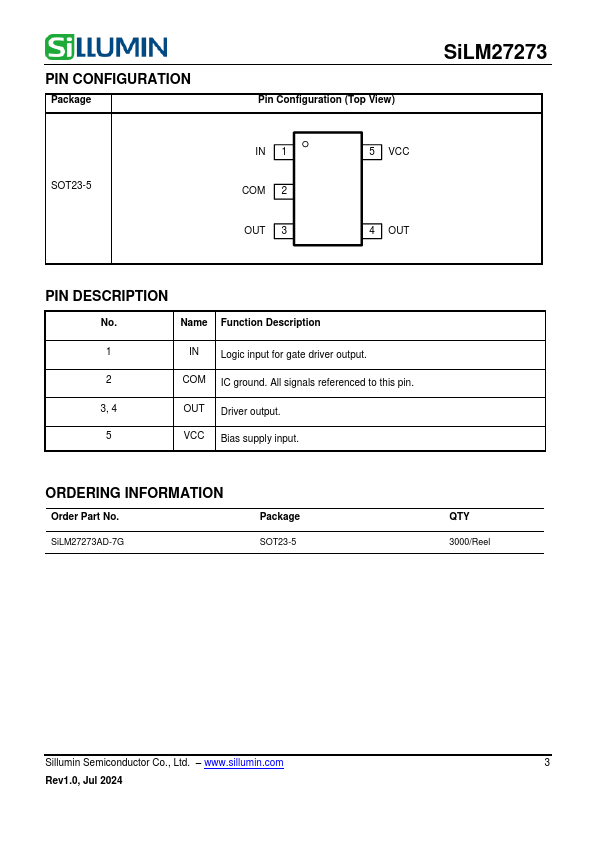

Additional preview pages of the SiLM27273 datasheet.

📁 Similar Datasheet

Other Datasheets by Sillumin
  • SiLM27511H - Low-Side Gate Driver
  • SiLM27517H-AQ - Single-Channel High-Speed Low-Side Gate Driver
  • SiLM27519 - Single-Channel High-Speed Low-Side Gate Driver
  • SiLM27523N - Dual-Channel High-Speed Low-Side Gate Driver
  • SiLM27524N - Low-Side Gate Driver
  • SiLM27531H-AQ - Single-Channel High-Speed Low-Side Gate Driver
  • SiLM27624LN - 30V 5A Dual-Channel Low-Side Gate Driver
  • SiLM2660 - Battery Pack Front-End Charge/Discharge High-Side NFET Driver

Full PDF Text Transcription

Click to expand full text
SiLM27273 Single-Channel, High-Speed, Low-Side Gate Driver GENERAL DESCRIPTION The SiLM27273 is a single-channel, high-speed, low-side gate driver device which can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SiLM27273 can source and sink high peakcurrent pulses into capacitive loads offering rail-torail drive capability and extremely small propagation delay, typically 18ns. The SiLM27273 can provide 4 A source, 5 A sink peak-drive current capability at 12 V VDD supply. FEATURES  Low-cost gate-driver device offering superior replacement of NPN and PNP discrete solutions  4 A peak source and 5 A peak sink current  Fast propagation delay (18 ns typical)  Fast rise and fall time (7 ns typical)  4.
