Solomon Systech SSD1300
SSD1300 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system. This IC is designed for Common Cathode type OLED panel. SSD1300 is suitable for many compact portable applications, such as mobile phone sub-display, calculator and MP3 player, etc.| Part No. | SSD1300 |
|---|---|
| Datasheet | SSD1300 Download |
| Manufacturer |  Solomon Systech |
| Description | OLED/PLED Segment/Common Driver |
| Buy | Stock & Price |

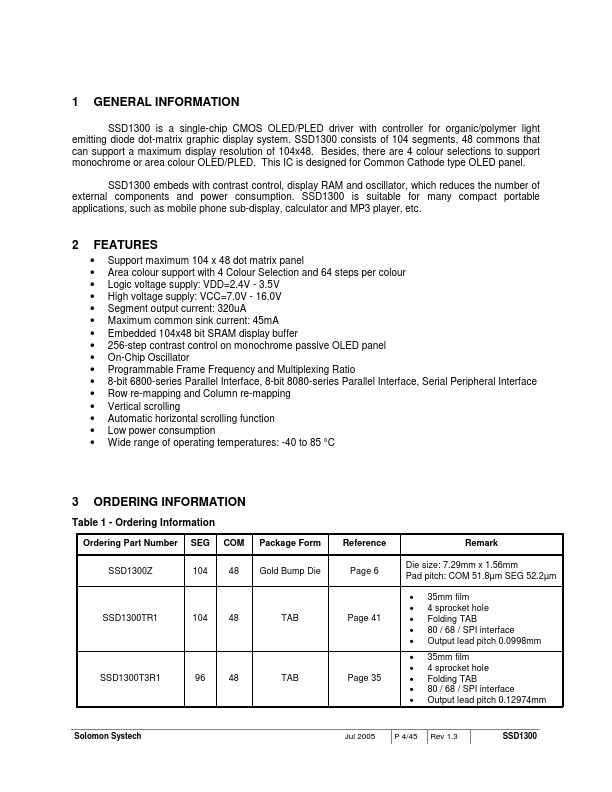

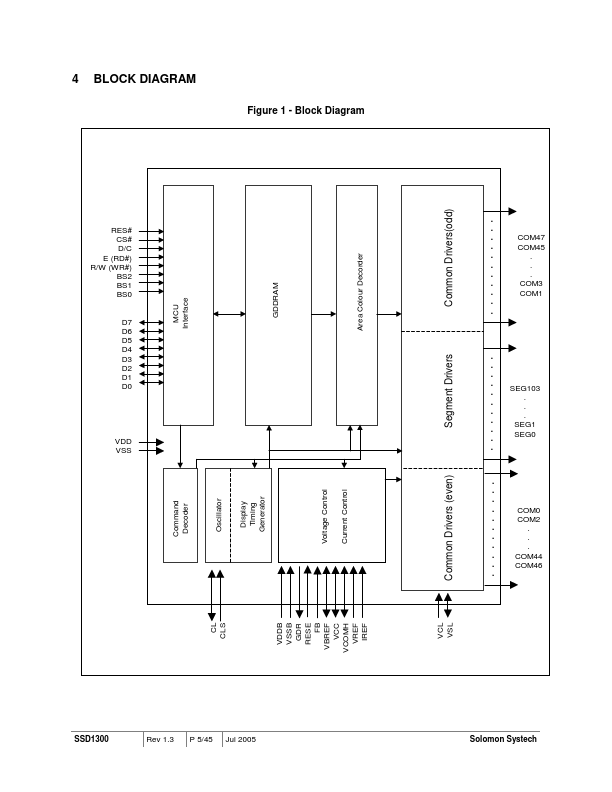

FEATURES
● Support maximum 104 x 48 dot matrix panel● Area colour support with 4 Colour Selection and 64 steps per colour
● Logic voltage supply: VDD=2.4V - 3.5V
● High voltage supply: VCC=7.0V - 16.0V
● Segment output current: 320uA
● Maximum common sink current: 45mA
● Embedded 104x48 bit SRAM display buffer
● 256-step contrast control on monochrome passive OLED panel
● On-Chip Oscillator
● Programmable Frame Frequency and Multiplexing Ratio
● 8-bit 6800-series Parallel Interface, 8-bit 8080-series Parallel Interface, Serial Peripheral Interface
● Row re-mapping and Column re-mapping
● Vertical scrolling
● Automatic horizontal scrolling function
● Low power consumption
● Wide range of operating temperatures: -40 to 85 °C 3 ORDERING INFORMATION Table 1 - Ordering Information Ordering Part Number SEG COM Package Form SSD1300Z 104 48 Gold Bump Die SSD1300TR1 104 48 TAB SSD1300T3R1 96 48 TAB Reference Page 6 Page 41 Page 35 Remark Die size: 7.29mm x 1.56mm Pad pitch: COM 51.8µm SEG 52.2...
