SSD1305 - OLED/PLED Segment/Common Driver

Solomon Systech

General Description

7 2

Key Features

7 3.

📥 Download Datasheet

SSD1305 oled/pled segment/common driver by Solomon Systech - Datasheet Preview

Datasheet Details

Part number	SSD1305
Manufacturer	Solomon Systech
File Size	1.47 MB
Description	OLED/PLED Segment/Common Driver
Datasheet	SSD1305 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SSD1303	132 x 64 Dot Matrix OLED/PLED Segment/Common Driver	Solomon
SSD1327	OLED/PLED Segment/Common Driver	Solomon
SSD1332	OLED/PLED Segment/Common Driver	Solomon
SSD1353	OLED/PLED Segment/Common Driver	Solomon
SSD1360	OLED/PLED Segment/Common Driver	Solomon

Other Datasheets by Solomon Systech

Part Number	Description
SSD1301	OLED/PLED segment / common driver
SSD1306	128 x 64 Dot Matrix OLED/PLED Segment/Common Driver
SSD1306B	OLED/PLED Segment/Common Driver
SSD1307	128 x 39 Dot Matrix OLED/PLED Segment/Common Driver
SSD1308	128 x 64 Dot Matrix OLED/PLED Segment/Common Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

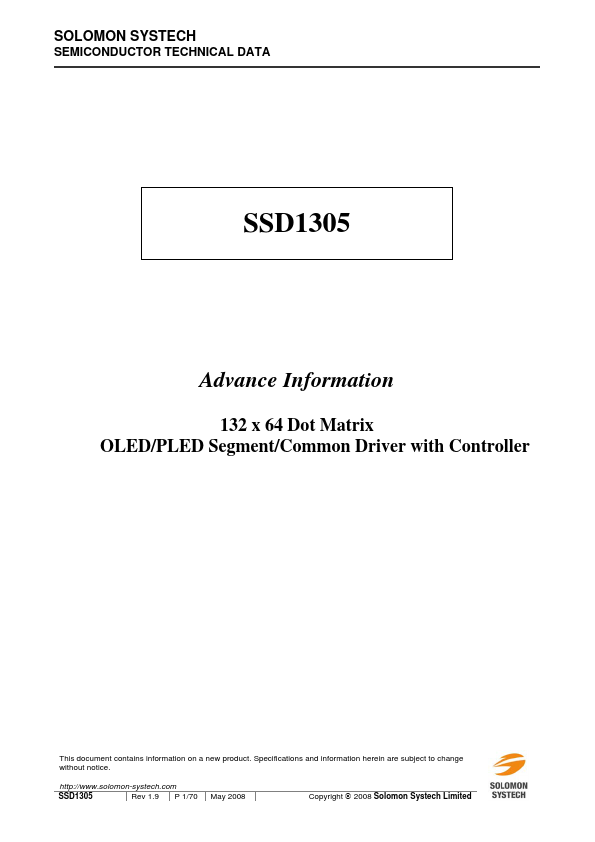

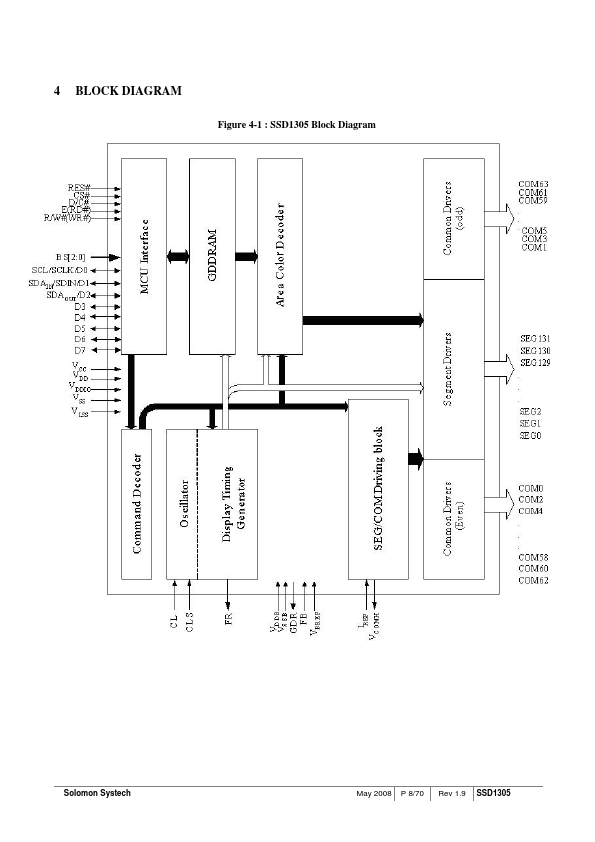

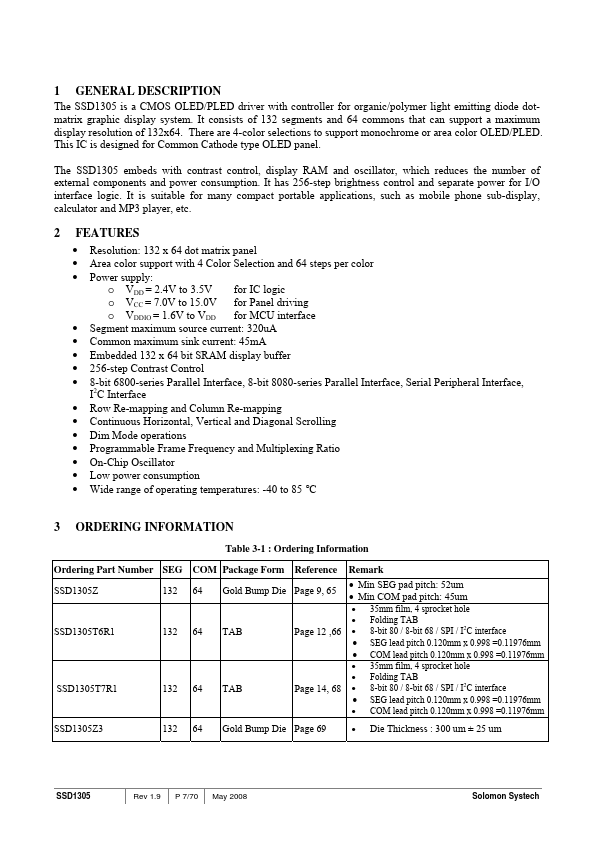

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD1305 Advance Information 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver with Controller This document contains information on a new product. Specifications and information herein are subject to change without notice. http://www.solomon-systech.com SSD1305 Rev 1.9 P 1/70 May 2008 Copyright © 2008 Solomon Systech Limited CONTENTS 1 GENERAL DESCRIPTION .................................................................................................... 7 2 FEATURES ............................................................................................................................... 7 3 ORDERING INFORMATION................................................................................................ 7 4 BLOCK DIAGRAM ........
