Solomon Systech SSD1306
SSD1306 is a single-chip CMOS OLED/PLED driver with controller for organic / polymer light emitting diode dot-matrix graphic display system. It consists of 128 segments and 64 commons. This IC is designed for Common Cathode type OLED panel.| Part No. | SSD1306 |
|---|---|
| Datasheet | SSD1306 Download |
| Manufacturer |  Solomon Systech |
| Description | 128 x 64 Dot Matrix OLED/PLED Segment/Common Driver |
| Buy | Stock & Price |
GENERAL DESCRIPTION

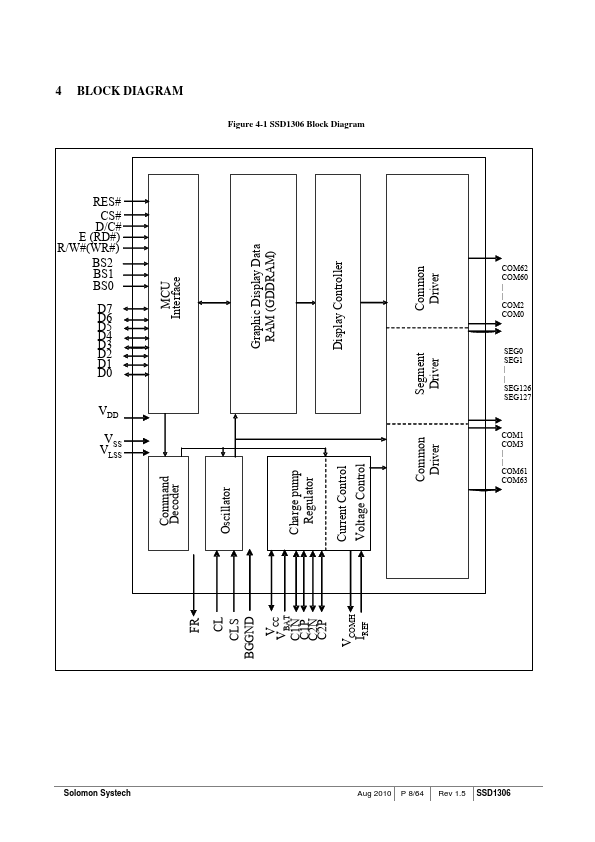

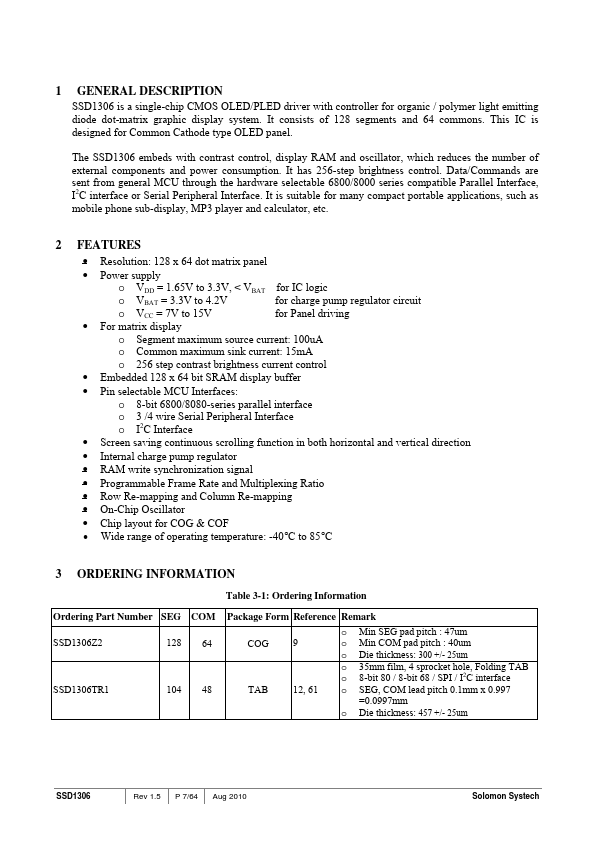

It consists of 128 segments and 64 commons. The SSD1306 embeds with contrast control, display RAM and oscillator, which reduces the number of external components and power consumption. It has 256-step brightness control. Data/Commands are sent from general MCU through the hardware selectable 6800/8000 series compatible Parallel Interface, I2C interface or Serial Peripheral Interface. It is suitable for many compact portable applications, such as mobile phone sub-display, MP3 player and calculator, etc. 2FEATURES
● Resolution: 128 x 64 dot matrix panel● Power supply o VDD = 1.65V to 3.3V, < VBAT for IC logic o VBAT = 3.3V to 4.2V o VCC = 7V to 15V for charge pump regulator circuit for Panel driving
● For matrix display o Segment maximum source current: 100uA o Common maximum sink current: 15mA o 256 step contrast brightness current control
● Embedded 128 x 64 bit SRAM display buffer
● Pin selectable MCU Interfaces: o 8-bit 6800/8080-series parallel interface o 3 /4...
