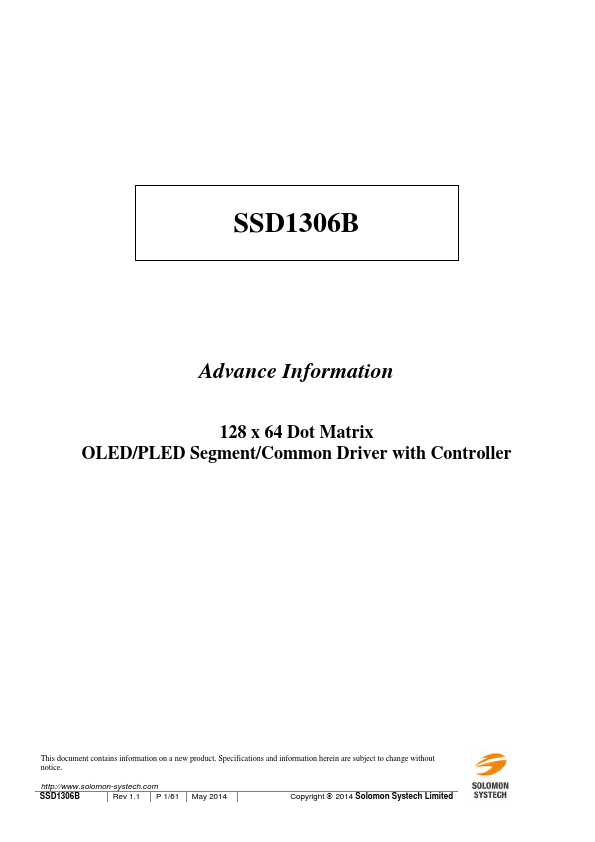

Solomon Systech SSD1306B
SSD1306B is a single-chip CMOS OLED/PLED driver with controller for organic / polymer light emitting diode dot-matrix graphic display system. It consists of 128 segments and 64 commons. This IC is designed for Common Cathode type OLED panel.| Part No. | SSD1306B |
|---|---|
| Datasheet | SSD1306B Download |
| Manufacturer |  Solomon Systech |
| Description | OLED/PLED Segment/Common Driver |
| Buy | Stock & Price |

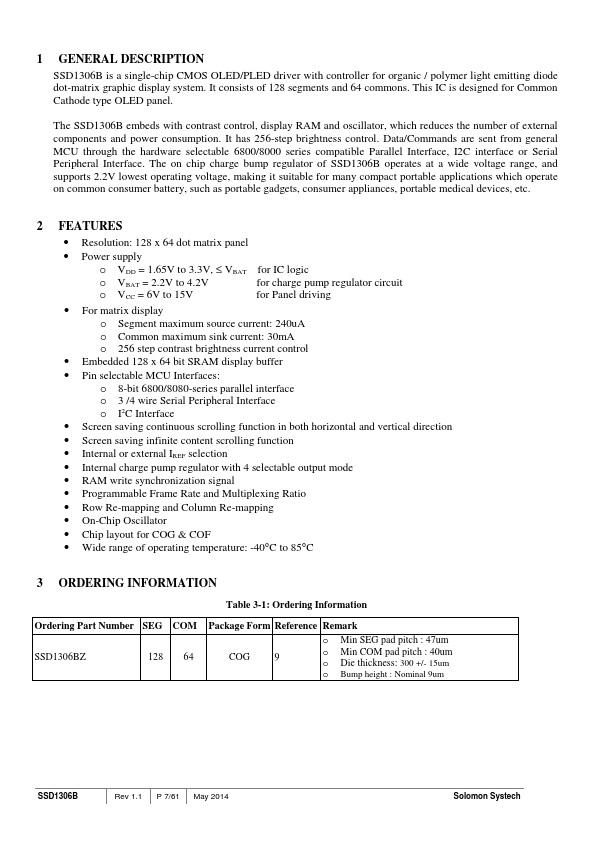

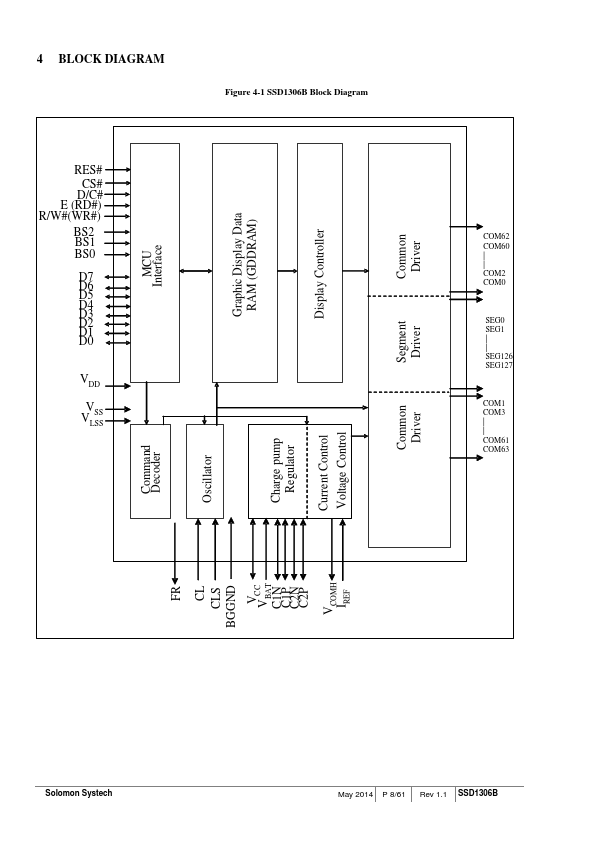

GENERAL DESCRIPTION
It consists of 128 segments and 64 commons. The SSD1306B embeds with contrast control, display RAM and oscillator, which reduces the number of external components and power consumption. It has 256-step brightness control. Data/Commands are sent from general MCU through the hardware selectable 6800/8000 series compatible Parallel Interface, I2C interface or Serial Peripheral Interface. The on chip charge bump regulator of SSD1306B operates at a wide voltage range, and supports 2.2V lowest operating voltage, making it suitable for many compact portable applications which operate on common consumer battery, such as portable gadgets, consumer appliances, portable medical devices, etc. 2FEATURES
● Resolution: 128 x 64 dot matrix panel● Power supply o VDD = 1.65V to 3.3V, ≤ VBAT for IC logic o VBAT = 2.2V to 4.2V for charge pump regulator circuit o VCC = 6V to 15V for Panel driving
● For matrix display o Segment maximum source current: 240uA o Common maximum sink curren...
