BAS21H

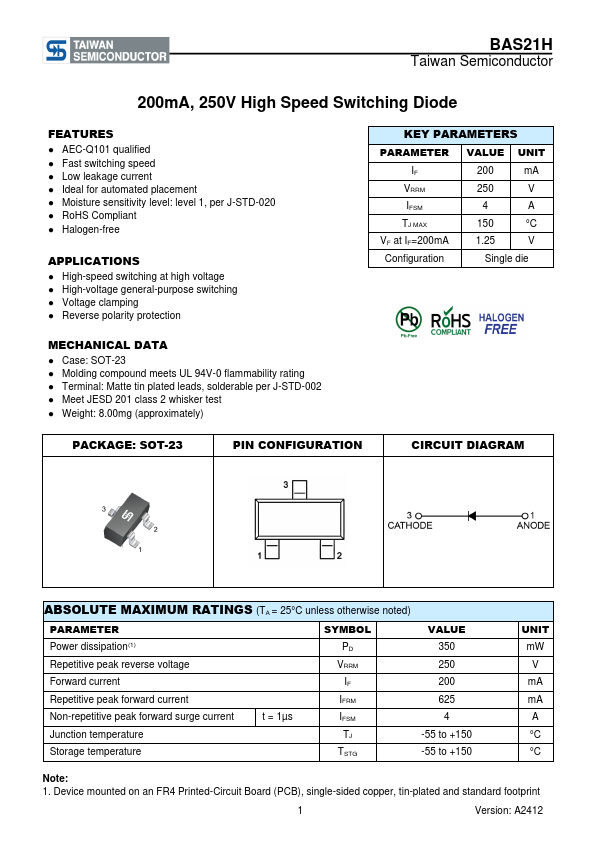

BAS21H is 200mA 250V High Speed Switching Diode manufactured by Taiwan Semiconductor.
FEATURES
- AEC-Q101 qualified
- Fast switching speed
- Low leakage current
- Ideal for automated placement
- Moisture sensitivity level: level 1, per J-STD-020
- Ro HS pliant
- Halogen-free
APPLICATIONS
- High-speed switching at high voltage
- High-voltage general-purpose switching
- Voltage clamping
- Reverse polarity protection
MECHANICAL DATA
- Case: SOT-23
- Molding pound meets UL 94V-0 flammability rating
- Terminal: Matte tin plated leads, solderable per J-STD-002
- Meet JESD 201 class 2 whisker test
- Weight: 8.00mg (approximately)
KEY PARAMETERS
PARAMETER VALUE UNIT
IF VRRM IFSM
200 m A
TJ MAX
°C
VF at IF=200m A Configuration
Single die
PACKAGE: SOT-23
PIN CONFIGURATION
CIRCUIT DIAGRAM

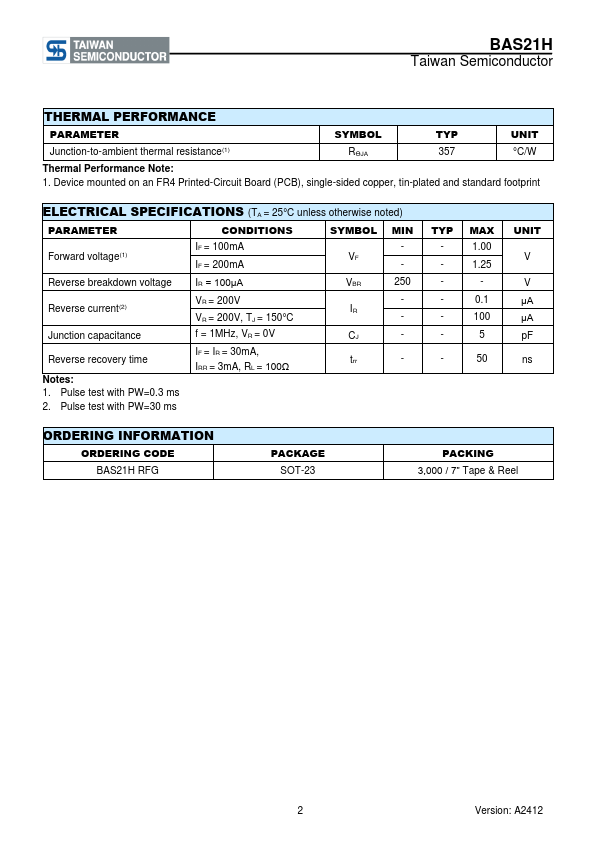

ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
PARAMETER
SYMBOL
VALUE

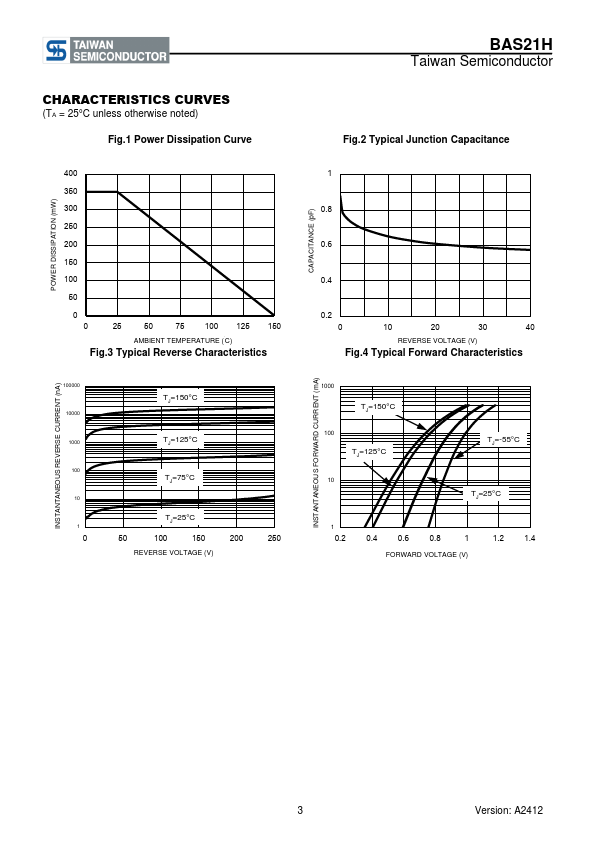

Power dissipation(1)
Repetitive peak reverse...
