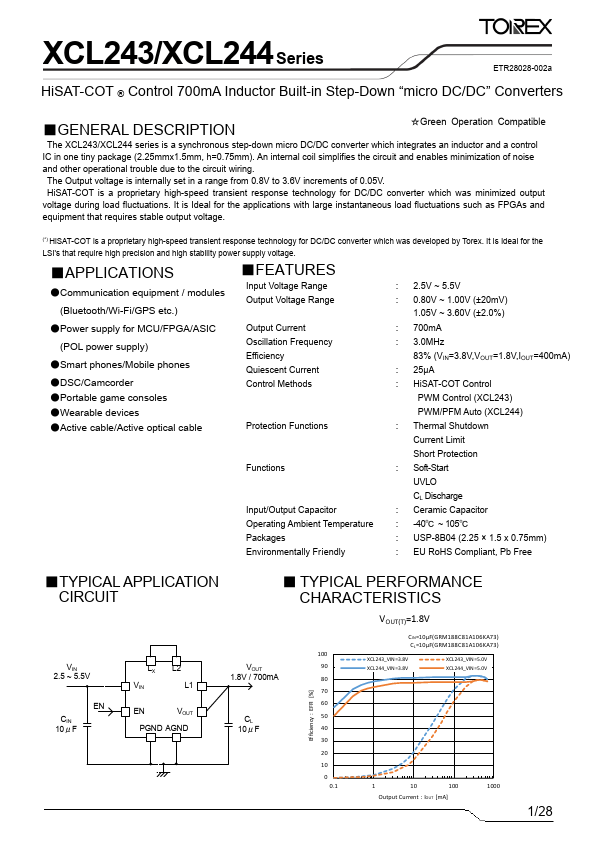

Datasheet Summary
XCL243/XCL244 Series
ETR28028-002a
HiSAT-COT ® Control 700mA Inductor Built-in Step-Down “micro DC/DC” Converters
- GENERAL DESCRIPTION
☆Green Operation patible
The XCL243/XCL244 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control
IC in one tiny package (2.25mmx1.5mm, h=0.75mm). An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring.
The Output voltage is internally set in a range from 0.8V to 3.6V increments of 0.05V.
HiSAT-COT is a proprietary high-speed transient response technology for DC/DC converter which was minimized output voltage during load...
