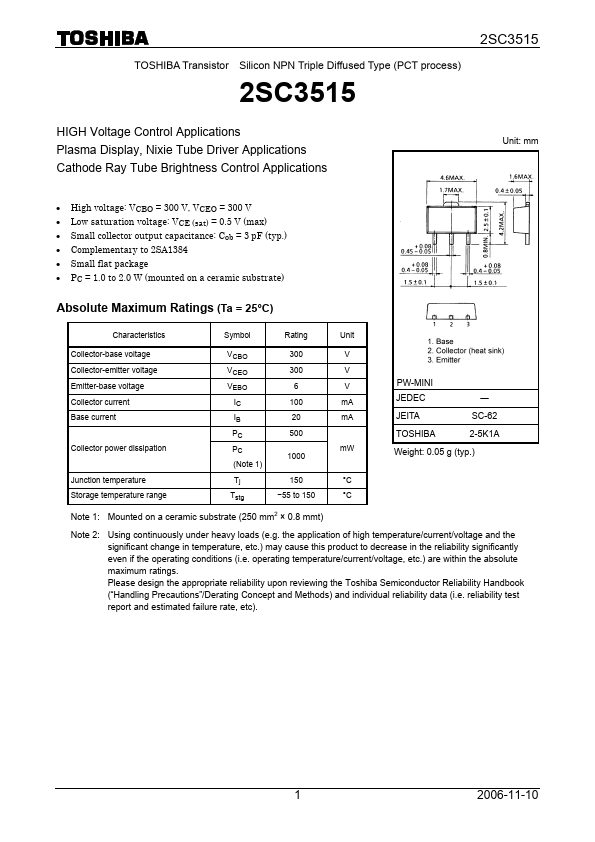

TOSHIBA Transistor Silicon NPN Triple Diffused Type (PCT process)
2SC3515
2SC3515
HIGH Voltage Control Applications Plasma Display, Nixie Tube Driver Applications Cathode Ray Tube Brightness Control Applications
Unit: mm
· High voltage: VCBO = 300 V, VCEO = 300 V · Low saturation voltage: VCE (sat) = 0.5 V (max) · Small collector output capacitance: Cob = 3 pF (typ.) · Complementary to 2SA1384 · Small flat package · PC = 1.0 to 2.
