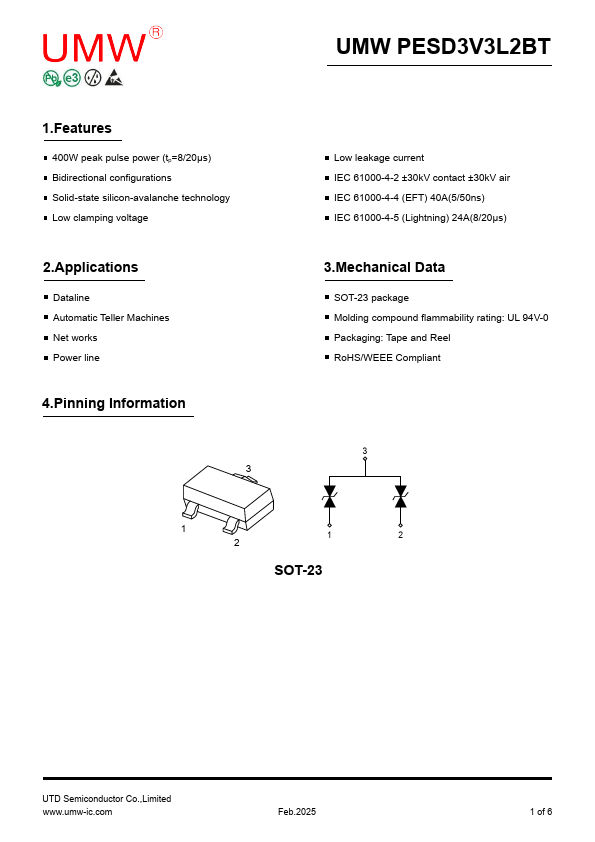

PESD3V3L2BT
Features
400W peak pulse power (tp=8/20μs) Bidirectional configurations Solid-state silicon-avalanche technology Low clamping voltage
2.Applications
Dataline Automatic Teller Machines Net works Power line
4.Pinning Information
Low leakage current IEC 61000-4-2 ±30k V contact ±30k V air IEC 61000-4-4 (EFT) 40A(5/50ns) IEC 61000-4-5 (Lightning) 24A(8/20μs)
3.Mechanical Data
SOT-23 package Molding pound flammability rating: UL 94V-0 Packaging: Tape and Reel Ro HS/WEEE pliant
1 2
SOT-23
UTD Semiconductor Co.,Limited .umw-ic.
Feb.2025
1 of 6
.umw-ic.
UMW PESD3V3L2BT

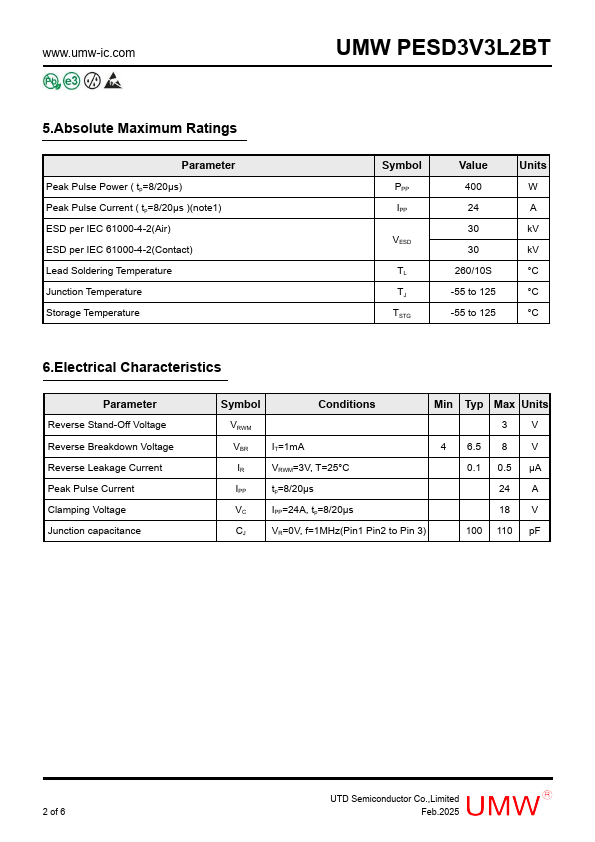

5.Absolute Maximum Ratings
Parameter Peak Pulse Power ( tp=8/20μs) Peak Pulse Current ( tp=8/20μs )(note1) ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2(Contact) Lead Soldering Temperature Junction Temperature Storage Temperature
Symbol PPP IPP
VESD
TL TJ TSTG
Value 400 24 30 30
260/10S -55 to 125 -55 to 125
Units W A k V k V °C °C °C
6.Electrical Characteristics
Parameter Reverse Stand-Off Voltage Reverse...
