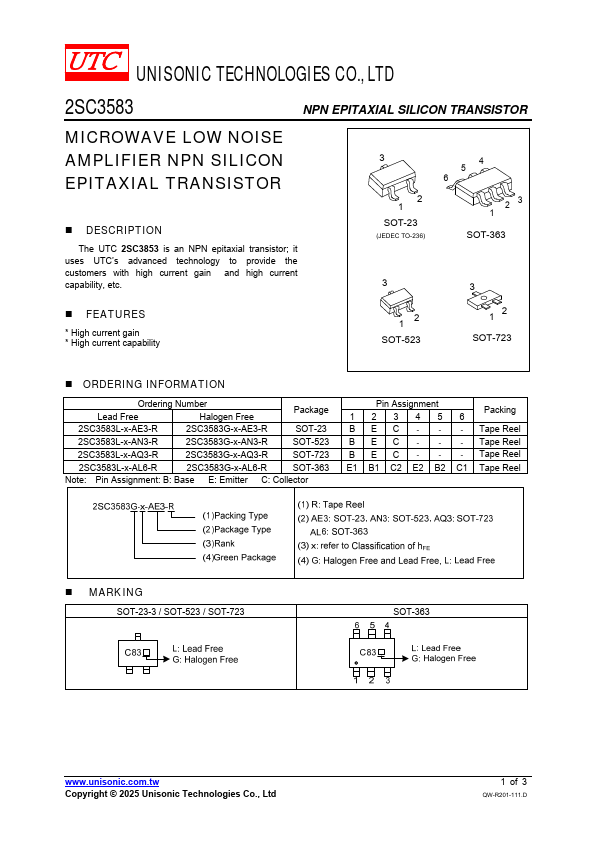

Unisonic Technologies 2SC3583
2SC3853 is an NPN epitaxial transistor; it uses UTC’s advanced technology to provide the customers with high current gain and high current capability, etc.| Part No. | 2SC3583 |
|---|---|
| Datasheet | 2SC3583 Download |
| Manufacturer |  Unisonic Technologies |
| Description | NPN EPITAXIAL SILICON TRANSISTOR |
| Buy | Stock & Price |
DESCRIPTION
The UTC 3 2 1 SOT-23 (JEDEC TO-236) 54 6 23 1 SOT-363 3 3●
FEATURES
* High current gain * High current capability 12 SOT-523 12 SOT-723● ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package 2SC3583L-x-AE3-R 2SC3583G-x-AE3-R SOT-23 2SC3583L-x-AN3-R 2SC3583G-x-AN3-R SOT-523 2SC3583L-x-AQ3-R 2SC3583G-x-AQ3-R SOT-723 2SC3583L-x-AL6-R 2SC3583G-x-AL6-R SOT-363 Note: Pin Assignment: B: Base E: Emitter C: Collector Pin Assignment 123456 Packing B E C - - - Tape Reel B E C - - - Tape Reel B E C - - - Tape Reel E1 B1 C2 E2 B2 C1 Tape Reel
● MARKING SOT-23-3 / SOT-523 / SOT-723 SOT-363 Copyright © 2025 Unisonic Technologies Co., Ltd 1 of 3 QW-R201-111.D 2SC3583 NPN EPITAXIAL SILICON TRANSISTOR
●

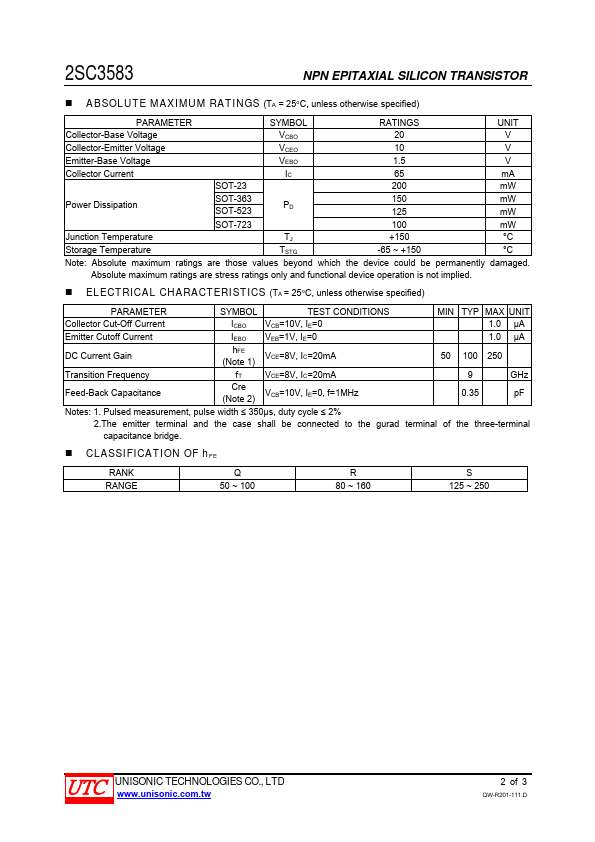

ABSOLUTE MAXIMUM RATINGS
(TA = 25°C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage VCBO 20 V Collector-Emitter Voltage VCEO 10 V Emitter-Base Voltage VEBO 1.5 V Collector Current IC 65 mA SOT-23 200 mW Power Dissipation SOT-363 SOT-523 PD 150...
