Unisonic Technologies 2SD1898
NPN SILICON TRANSISTOR
| Part No. | 2SD1898 |
|---|---|
| Datasheet | 2SD1898 Download |
| Manufacturer |  Unisonic Technologies |
| Description | NPN SILICON TRANSISTOR |
| Buy | Stock & Price |
FEATURES
*High VCEO= 80V *High IC= 1A (DC) *Good hFE linearity *Low VCE(SAT) *Complements the 2SB1260● ORDERING INFORMATION Ordering Number Lead Free Halogen Free 2SD1898L-x-AA3-R 2SD1898G-x-AA3-R 2SD1898L-x-AB3-R 2SD1898G-x-AB3-R 2SD1898L-x-AE2-R 2SD1898G-x-AE2-R 2SD1898L-x-AE3-R 2SD1898G-x-AE3-R Note: Pin Assignment: B: Base C: Collector E: Emitter Package SOT-223 SOT-89 SOT-23-3 SOT-23 Pin Assignment 1 2 3 B C E B C E B E C B E C Packing Tape Reel Tape Reel Tape Reel Tape Reel
● MARKING SOT-223 SOT-89 SOT-23-3 / SOT-23 Copyright © 2023 Unisonic Technologies Co., Ltd 1 of 4 QW-R208-030.I 2SD1898 NPN SILICON TRANSISTOR
●

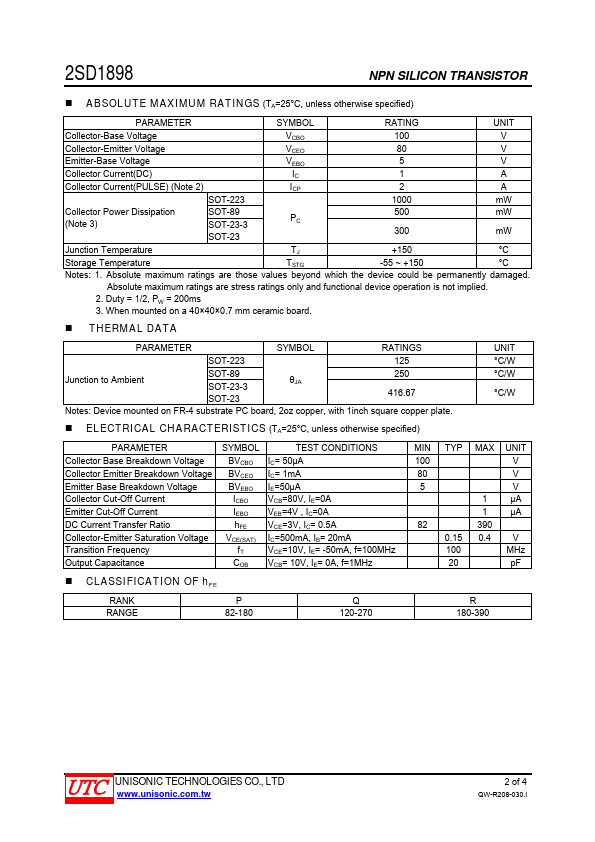

ABSOLUTE MAXIMUM RATINGS
(TA=25°C, unless otherwise specified) PARAMETER SYMBOL RATING UNIT Collector-Base Voltage VCBO 100 V Collector-Emitter Voltage VCEO 80 V Emitter-Base Voltage VEBO 5 V Collector Current(DC) IC 1 A Collector Current(PULSE) (Note 2) ICP 2 A SOT-223 1000 mW Collector Power Dissipation (Note 3) SOT-89 SOT-23-3 PC SOT-23 500 mW 300 mW Junction Temperature TJ +150 °C Storage Temperature TSTG -55 ~ +150 °C Notes: 1.
