MBR1100 - 100V SCHOTTKY BARRIER RECTIFIER

Product Overview

Unisonic Technologies

Datasheet Details

Part number	MBR1100
Manufacturer	Unisonic Technologies
File Size	149.53 KB
Description	100V SCHOTTKY BARRIER RECTIFIER
Datasheet	MBR1100 Datasheet
Additional preview pages of the MBR1100 datasheet.

Product details

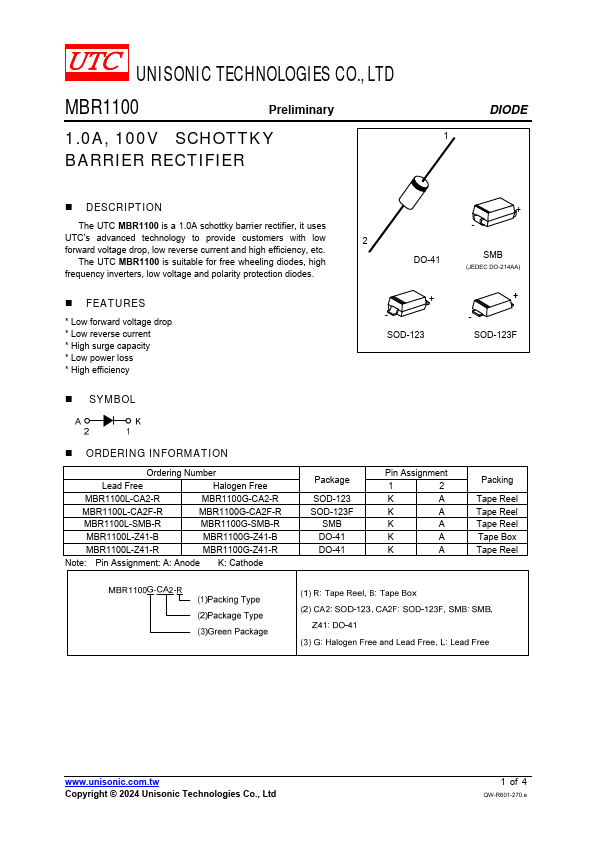

Description

The UTC MBR1100 is a 1.0A schottky barrier rectifier, it uses UTC’s advanced technology to provide customers with low forward voltage drop, low reverse current and high efficiency, etc.

Features

Low forward voltage drop.
Low reverse current.
High surge capacity.
Low power loss.
High efficiency.
SYMBOL 2 + - SOD-123F DO-41 + - SMB (JEDEC DO-214AA).
