2SJ324-VB

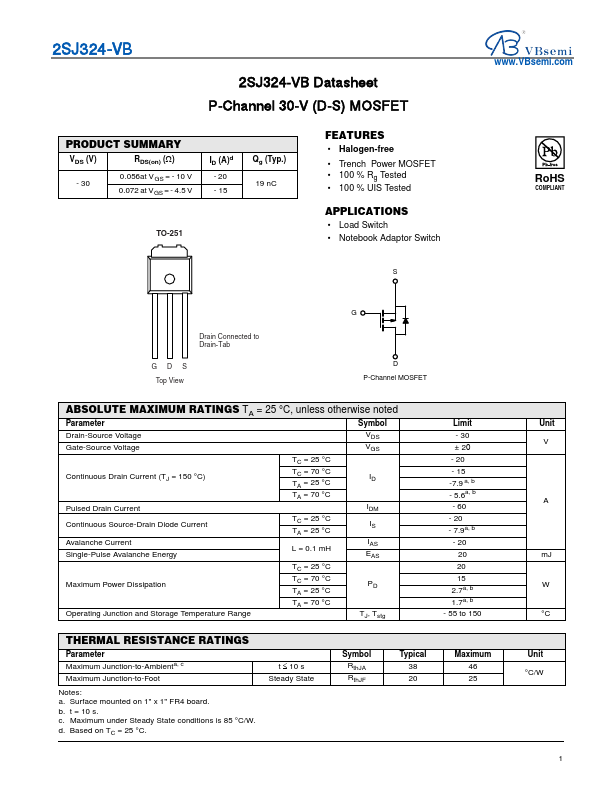

2SJ324-VB Datasheet P-Channel 30-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
- 30
0.056at VGS = - 10 V
0.072 at VGS = - 4.5 V
ID (A)d - 20 - 15
Qg (Typ.) 19 nC
TO-251
FEATURES • Halogen-free • Trench Power MOSFET • 100 % Rg Tested • 100 % UIS Tested
APPLICATIONS • Load Switch • Notebook Adaptor Switch
S
www.VBsemi.
