2SK2158 - 60V N-Channel MOSFET

VBsemi

Key Features

Halogen-free According to IEC 61249-2-21 Definition.
Low Threshold: 2 V (typ. ).
Low Input Capacitance: 25 pF.
Fast Switching Speed: 25 ns.
Low Input and Output Leakage.
Trench Power MOSFET.
Compliant to RoHS Directive 2002/95/EC.

2SK2158 60v n-channel mosfet by VBsemi - Datasheet Preview

Datasheet Details

Part number	2SK2158
Manufacturer	VBsemi
File Size	253.56 KB
Description	60V N-Channel MOSFET
Datasheet	2SK2158 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SK2158	N-CHANNEL MOS FET	NEC
2SK2158	N-CHANNEL MOSFET	Renesas
2SK2158	MOS Field Effect Transistor	Kexin
2SK215	Silicon N-Channel MOS FET	Hitachi Semiconductor
2SK215	N-Channel MOSFET	Renesas Technology

Other Datasheets by VBsemi

Part Number	Description
2SK2151	P-Channel 30V MOSFET
2SK2159	60V N-Channel MOSFET
2SK2109	60V N-Channel MOSFET
2SK2110	100V N-Channel MOSFET
2SK2112	100V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

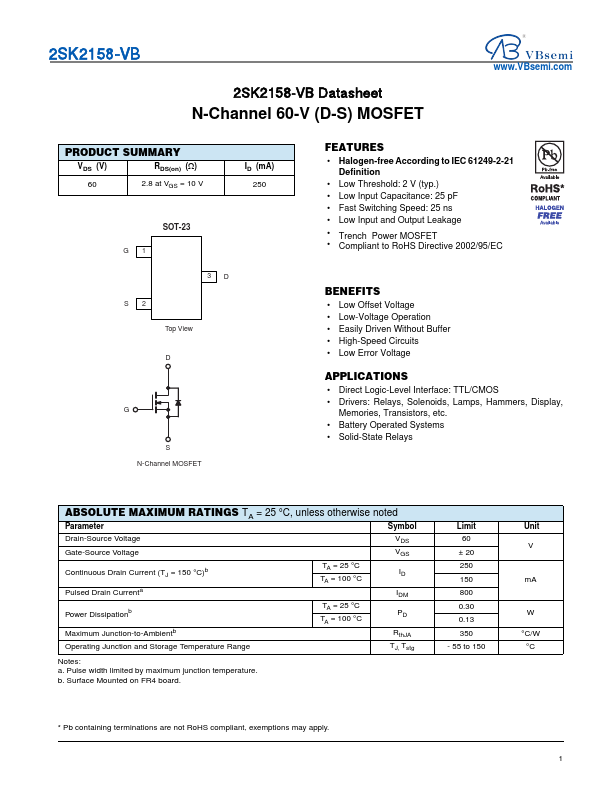

2SK2158-VB 2SK2158-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 60 2.8 at VGS = 10 V ID (mA) 250 SOT-23 G1 3D S2 Top View D G S N-Channel MOSFET FEATURES • Halogen-free According to IEC 61249-2-21 Definition • Low Threshold: 2 V (typ.) • Low Input Capacitance: 25 pF • Fast Switching Speed: 25 ns • Low Input and Output Leakage • Trench Power MOSFET • Compliant to RoHS Directive 2002/95/EC BENEFITS • Low Offset Voltage • Low-Voltage Operation • Easily Driven Without Buffer • High-Speed Circuits • Low Error Voltage APPLICATIONS • Direct Logic-Level Interface: TTL/CMOS • Drivers: Relays, Solenoids, Lamps, Hammers, Display, Memories, Transistors, etc.
