40P03 - 30V P-Channel MOSFET

Key Features

  • Halogen-free.
  • Trench Power MOSFET.
  • 100 % Rg Tested.
  • 100 % UIS Tested.

📥 Download Datasheet

Datasheet Details

Part number 40P03
Manufacturer VBsemi
File Size 334.21 KB
Description 30V P-Channel MOSFET
Datasheet download datasheet 40P03 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
40P03 P-Channel Enhancement MOSFET Kexin
40P03 P-Channel enhancement mode power field effect transistors JINGAO
40P03 P-Ch 30V Fast Switching MOSFET XUANXINWEI
40P03DL P-CHANNEL MOSFET PINGWEI
40P03GI AP40P03GI Advanced Power Electronics

Other Datasheets by VBsemi

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

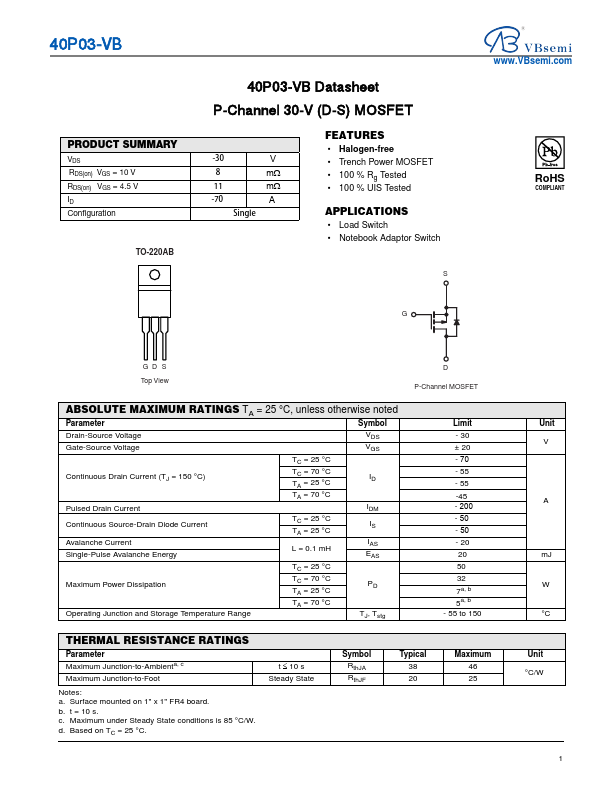

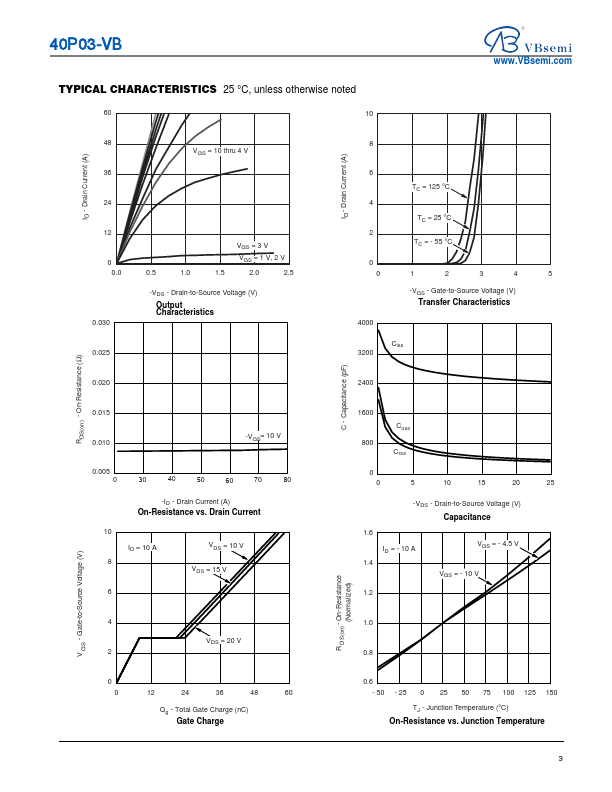

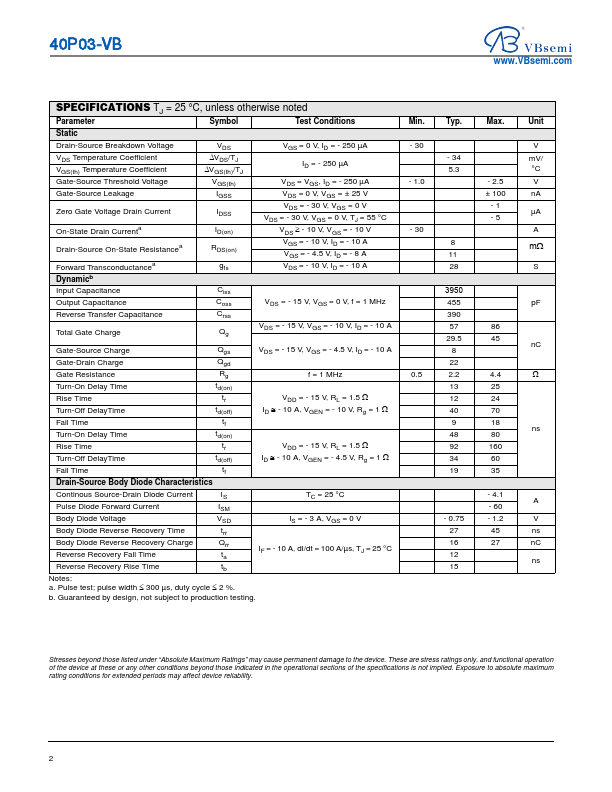

40P03-VB PRODUCT SUMMARY VDS RDS(on) VGS = 10 V RDS(on) VGS = 4.5 V ID Configuration TO-220AB 40P03-VB Datasheet P-Channel 30-V (D-S) MOSFET -30 V 8 mΩ 11 mΩ -70 A Single FEATURES • Halogen-free • Trench Power MOSFET • 100 % Rg Tested • 100 % UIS Tested APPLICATIONS • Load Switch • Notebook Adaptor Switch S G www.VBsemi.com RoHS COMPLIANT GD S Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID Pulsed Drain Current TA = 70 °C IDM Continuous Source-Drain Diode Current Avalanche Current Single-Pulse Avalanche Energy TC = 25 °C TA = 25 °C IS L = 0.
