Datasheet Details
| Part number | 40P03 |
|---|---|
| Manufacturer | XUANXINWEI |
| File Size | 1.75 MB |
| Description | P-Ch 30V Fast Switching MOSFET |
| Datasheet | 40P03-XUANXINWEI.pdf |
|
|
Overview: 100% EAS Guaranteed Green Device Available Super Low Gate Charge Excellent CdV/dt effect decline Advanced high cell density.
| Part number | 40P03 |
|---|---|
| Manufacturer | XUANXINWEI |
| File Size | 1.75 MB |
| Description | P-Ch 30V Fast Switching MOSFET |
| Datasheet | 40P03-XUANXINWEI.pdf |
|
|
|
The 40P03 is the high cell density trenched P-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The 40P03 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability approved.

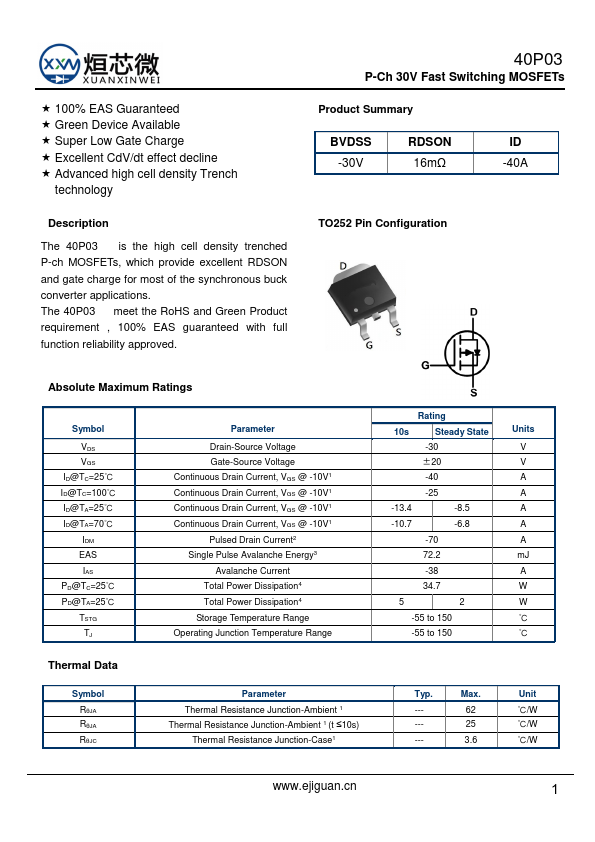

40P03 P-Ch 30V Fast Switching MOSFETs Product Summary BVDSS -30V RDSON 16mΩ ID -40A TO252 Pin Configuration Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ ID@TA=25℃ ID@TA=70℃ IDM EAS IAS PD@TC=25℃ PD@TA=25℃ TSTG TJ Thermal Data Symbol RθJA RθJA RθJC Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @ -10V1 Continuous Drain Current, VGS @ -10V1 Continuous Drain Current, VGS @ -10V1 Continuous Drain Current, VGS @ -10V1 Pulsed Drain Current2 Single Pulse Avalanche Energy3 Avalanche Current Total Power Dissipation4 Total Power Dissipation4 Storage Temperature Range Operating Junction Temperature Range Parameter Thermal Resistance Junction-Ambient 1 Thermal Resistance Junction-Ambient 1 (t ≤10s) Thermal Resistance Junction-Case1 Rating 10s Steady State -30 ±20 -40 -25 -13.4 -8.5 -10.7 -6.8 -70 72.2 -38 34.7 5 2 -55 to 150 -55 to 150 Units V V A A A A A mJ A W W ℃ ℃ Typ.
