40P03DL - P-CHANNEL MOSFET

Download the 40P03DL datasheet PDF. This datasheet also covers the 40P03GL variant, as both devices belong to the same p-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

40P03DL p-channel mosfet by PINGWEI - Datasheet Preview — Note: The manufacturer provides a single datasheet file (40P03GL-PINGWEI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	40P03DL
Manufacturer	PINGWEI
File Size	2.79 MB
Description	P-CHANNEL MOSFET
Datasheet	40P03DL Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
40P03	P-Channel Enhancement MOSFET	Kexin
40P03	30V P-Channel MOSFET	VBsemi
40P03	P-Channel enhancement mode power field effect transistors	JINGAO
40P03	P-Ch 30V Fast Switching MOSFET	XUANXINWEI
40P03GI	AP40P03GI	Advanced Power Electronics

Other Datasheets by PINGWEI

Part Number	Description
40P03GL	P-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

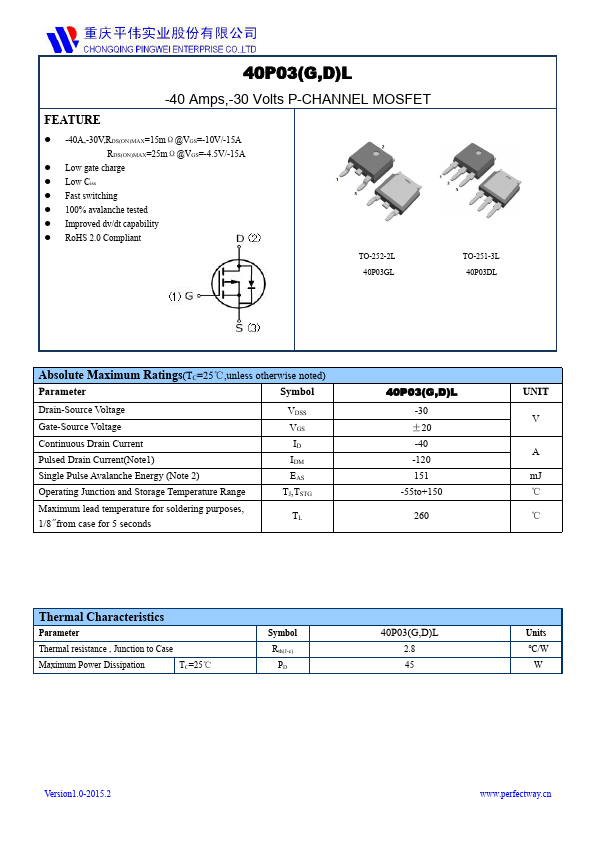

40P03(G,D)L -40 Amps,-30 Volts P-CHANNEL MOSFET FEATURE  -40A,-30V,RDS(ON)MAX=15mΩ@VGS=-10V/-15A RDS(ON)MAX=25mΩ@VGS=-4.5V/-15A  Low gate charge  Low Ciss  Fast switching  100% avalanche tested  Improved dv/dt capability  RoHS 2.
