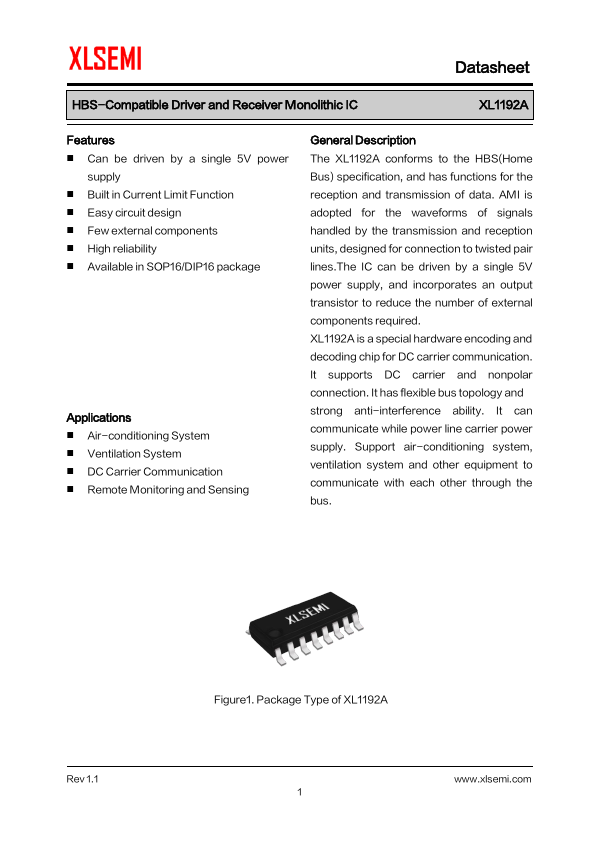

Datasheet Summary
HBS-patible Driver and Receiver Monolithic IC
Features
- Can be driven by a single 5V power supply
- Built in Current Limit Function
- Easy circuit design
- Few external ponents
- High reliability
- Available in SOP16/DIP16 package
Applications
- Air-conditioning System
- Ventilation System
- DC Carrier munication
- Remote Monitoring and Sensing
General Description The XL1192A conforms to the HBS(Home Bus) specification, and has functions for the reception and transmission of data. AMI is adopted for the waveforms of signals handled by the transmission and reception units, designed for connection to twisted pair lines.The IC can be driven by a single 5V power...
