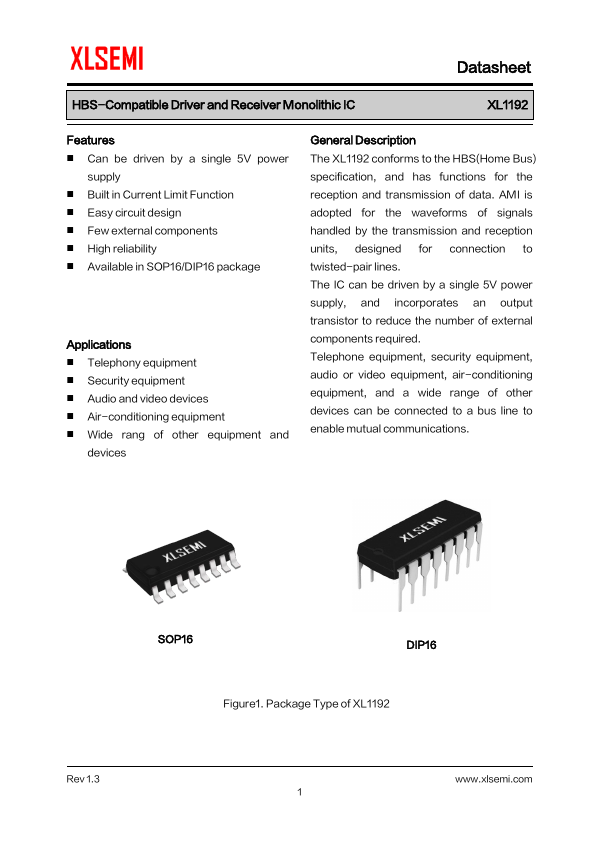

Features - Can be driven by a single 5V power supply - Built in Current Limit Function - Easy circuit design - Few external ponents - High reliability - Available in SOP16/DIP16 package Applications - Telephony equipment - Security equipment - Audio and video devices - Air-conditioning equipment - Wide rang of other equipment and devices General Description The XL1192 conforms to the HBS(Home Bus) specification, and has functions for the reception and transmission of data. AMI is adopted for the waveforms of signals handled by the transmission and reception units, designed for connection to twisted-pair lines. The IC can be driven by a single 5V power supply, and incorporates an output transistor to reduce the number of external ponents required. Telephone equipment, security equipment, audio or video equipment, air-conditioning equipment, and a wide range of other devices can be connected to a bus line to enable mutual munications. SOP16 DIP16 Figure1. Package Type of XL1192 Rev 1.3 .xlsemi. 1 HBS-patible Driver and Receiver Monolithic IC Pin Configurations Figure2. Pin Configuration of XL1192 (Top View) Table 1 Pin Description Pin Number 1 2 3 4 5 6 7 8 Pin Name DATA OUT VIN Boost capacitor pin Boost capacitor pin RESET DATA IN DRIVER(B) DRIVER(A) Pin Number 9 10 11 12 13 14 15 16 Pin Name OUT(A) OUT(B) VCC COLLECTOR(b) GND COLLECTOR(a) IN(2) IN(1) Rev 1.3 .xlsemi. 2 HBS-patible Driver and Receiver Monolithic IC Function Block 33K 33K 2.5V + +...
