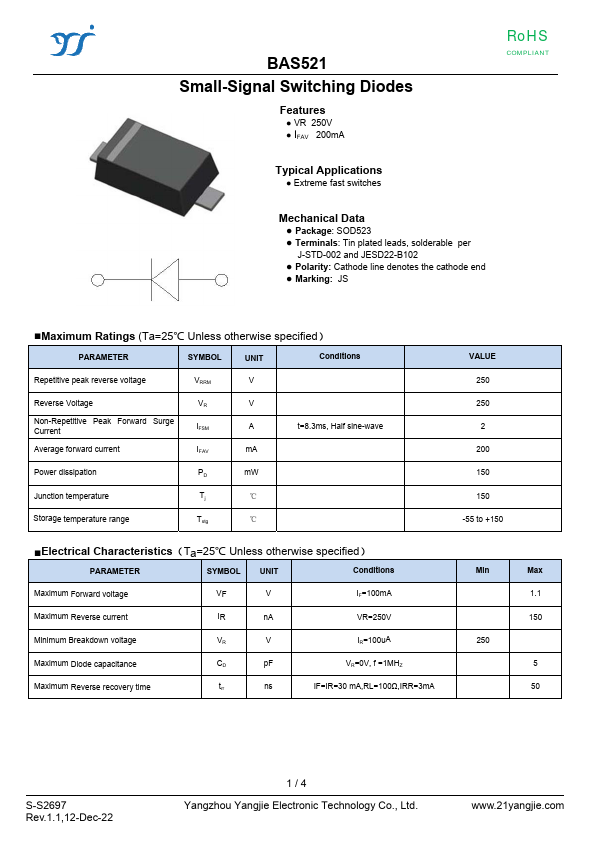

BAS521
BAS521 is Small-Signal Switching Diodes manufactured by Yangjie Electronic.
Features
- VR 250V
- IFAV 200m A
Ro HS
PLIANT
Typical Applications
- Extreme fast switches
Mechanical Data

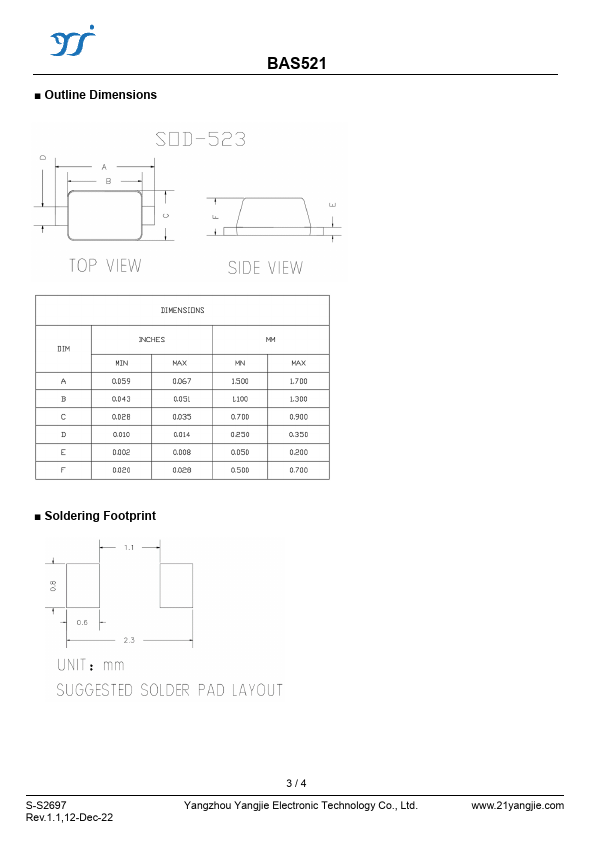

- Package: SOD523
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
- Marking: JS
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL
UNIT
Conditions
Repetitive peak reverse voltage
VRRM
Reverse Voltage
Non-Repetitive Peak Forward Surge Current
IFSM
Average forward current
IFAV m A t=8.3ms, Half sine-wave
Power dissipation
PD m W
Junction temperature
Tj
℃
Storage temperature range
Tstg
℃
- Electrical Characteristics（Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL...
