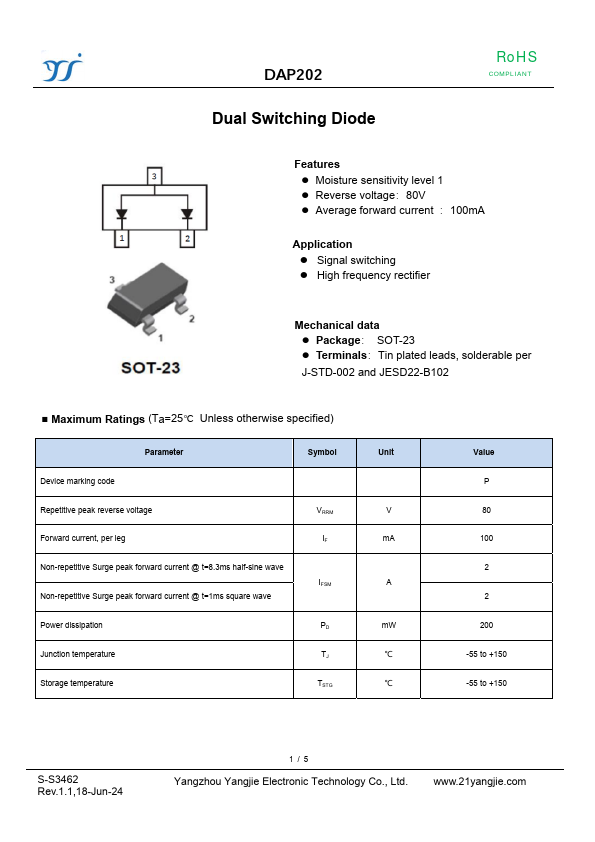

DAP202
Features
- Moisture sensitivity level 1
- Reverse voltage：80V
- Average forward current ：100m A
Application
- Signal switching
- High frequency rectifier
Mechanical data
- Package： SOT-23
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Parameter Device marking code Repetitive peak reverse voltage Forward current, per leg Non-repetitive Surge peak forward current @ t=8.3ms half-sine wave Non-repetitive Surge peak forward current @ t=1ms square wave Power dissipation Junction temperature Storage temperature
Symbol
VRRM IF IFSM PD TJ
TSTG
Unit
V m A A m W ℃ ℃
Value P 80 100 2 2
200 -55 to +150 -55 to +150
S-S3462 Rev.1.1,18-Jun-24
1/5
Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.

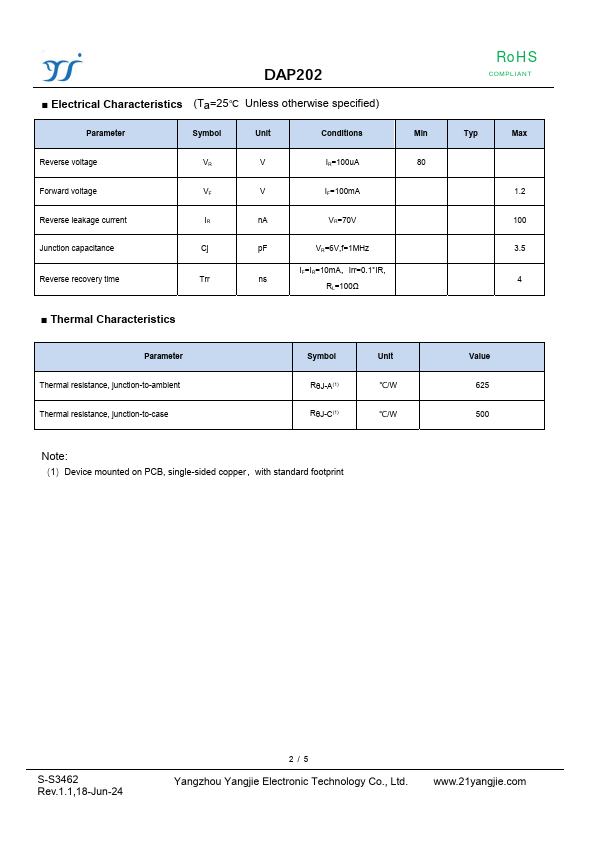

- Electrical Characteristics (Ta=25℃ Unless otherwise specified)
Parameter
Symbol
Unit
Conditions
Min
Reverse voltage Forward voltage Reverse leakage current Junction capacitance Reverse recovery...
