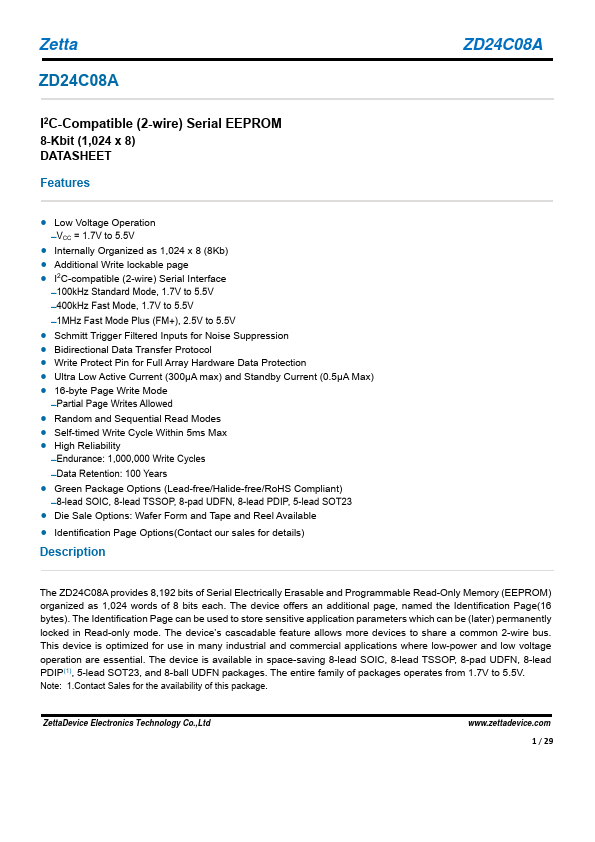

ZD24C08A Overview
The ZD24C08A provides 8,192 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 1,024 words of 8 bits each. The device offers an additional page, named the Identification Page(16 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
ZD24C08A Key Features
- Low Voltage Operation ̶ VCC = 1.7V to 5.5V
- Internally Organized as 1,024 x 8 (8Kb)
- Additional Write lockable page
- I2C-patible (2-wire) Serial Interface
- Schmitt Trigger Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (300μA max) and Standby Current (0.5μA Max)
- 16-byte Page Write Mode ̶ Partial Page Writes Allowed
- Random and Sequential Read Modes
