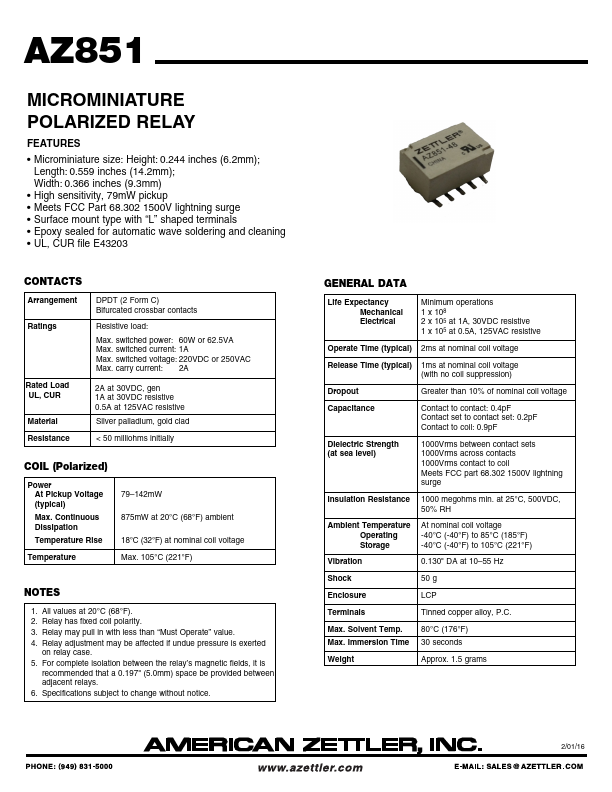

Datasheet Summary
MICROMINIATURE
POLARIZED RELAY
Features
- Microminiature size: Height: 0.244 inches (6.2mm); Length: 0.559 inches (14.2mm); Width: 0.366 inches (9.3mm)
- High sensitivity, 79mW pickup
- Meets FCC Part 68.302 1500V lightning surge
- Surface mount type with “L” shaped terminals
- Epoxy sealed for automatic wave soldering and cleaning
- UL, CUR file E43203
CONTACTS
Arrangement
DPDT (2 Form C) Bifurcated crossbar contacts
Ratings
Resistive load:
Max. switched power: 60W or 62.5VA Max. switched current: 1A Max. switched voltage: 220VDC or 250VAC Max. carry current: 2A
Rated Load UL, CUR
Material
2A at 30VDC, gen 1A at 30VDC resistive 0.5A at 125VAC resistive
Silver palladium, gold...
