2PD1820AS - NPN general purpose transistor

Nexperia

General Description

NPN transistor in a very small SOT323 (SC-70 ) Surface-Mounted Device (SMD) plastic package.

Key Features

High current (max. 500 mA).
Low voltage (max. 50 V).
Low collector-emitter saturation voltage (max. 600 mV).
AEC-Q101 qualified 3.

📥 Download Datasheet

2PD1820AS npn general purpose transistor by Nexperia - Datasheet Preview

Datasheet Details

Part number	2PD1820AS
Manufacturer	Nexperia
File Size	171.35 KB
Description	NPN general purpose transistor
Datasheet	2PD1820AS Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2PD1820AS	NPN general purpose transistor	NXP
2PD1820A	NPN general purpose transistor	NXP
2PD1820A	NPN General Purpose Transistor	Kexin
2PD1820AQ	NPN general purpose transistor	NXP
2PD1820AR	NPN general purpose transistor	NXP

Other Datasheets by Nexperia

Part Number	Description
2PD2150	3A NPN transistor
2PD601ARL	NPN general-purpose transistors
2PD601ARL-Q	50V 100mA NPN general-purpose transistors
2PD601ART	NPN transistor
2PD601ASL	50V 100mA NPN general-purpose transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

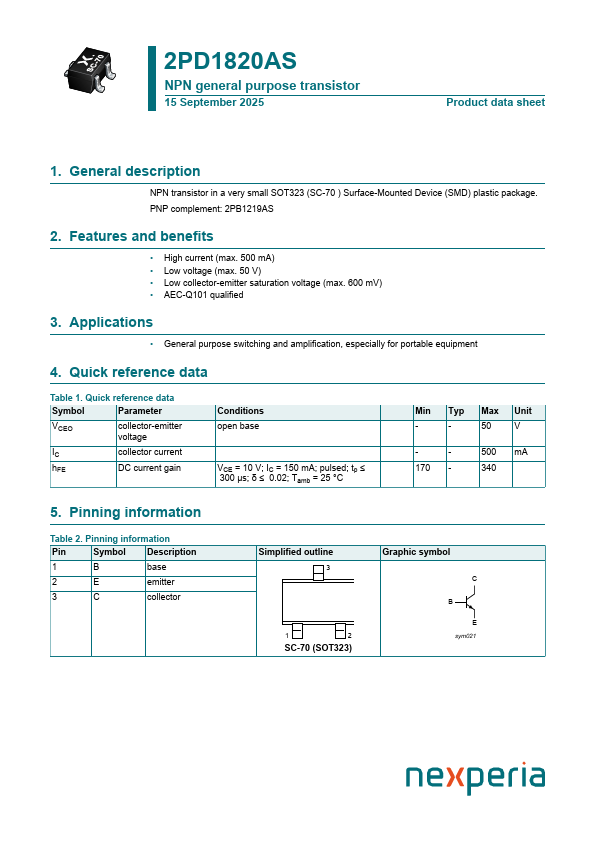

2PD1820AS NPN general purpose transistor 15 September 2025 Product data sheet 1. General description NPN transistor in a very small SOT323 (SC-70 ) Surface-Mounted Device (SMD) plastic package. PNP complement: 2PB1219AS 2. Features and benefits • High current (max. 500 mA) • Low voltage (max. 50 V) • Low collector-emitter saturation voltage (max. 600 mV) • AEC-Q101 qualified 3. Applications • General purpose switching and amplification, especially for portable equipment 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 10 V; IC = 150 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C Min Typ Max Unit - - 50 V - - 170 - 500 mA 340 5.
