2PD601ASW - 50V 100mA NPN general purpose transistor

General Description

NPN general purpose transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

2.

Key Features

  • General-purpose transistor.
  • Small SMD plastic package 3.

📥 Download Datasheet

Datasheet Details

Part number 2PD601ASW
Manufacturer Nexperia
File Size 276.20 KB
Description 50V 100mA NPN general purpose transistor
Datasheet download datasheet 2PD601ASW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2PD601A NPN general purpose transistor NXP
2PD601A NPN General Purpose Transistor Kexin
2PD601ART 100mA NPN general-purpose transistor NXP
2PD601AW NPN Transistor JCST
2PD601AW NPN Transistor GME

Other Datasheets by Nexperia

Part Number Description
2PD601ASL 50V 100mA NPN general-purpose transistors
2PD601ASL-Q 50V 100mA NPN general-purpose transistors
2PD601ARL NPN general-purpose transistors
2PD601ARL-Q 50V 100mA NPN general-purpose transistors
2PD601ART NPN transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

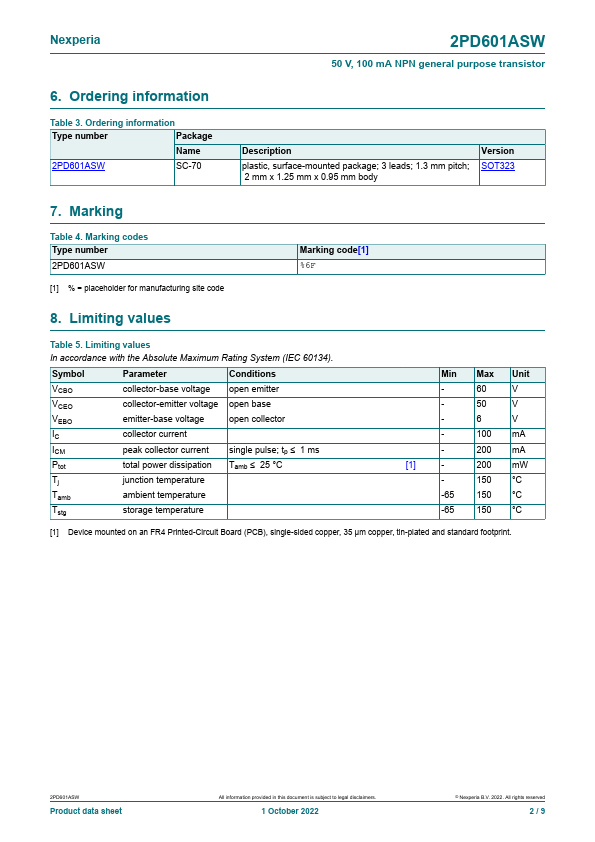

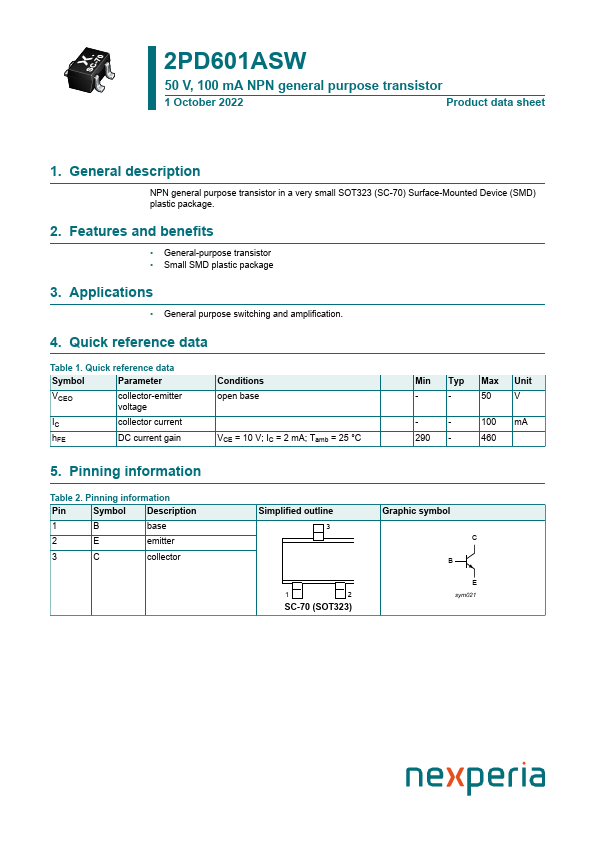

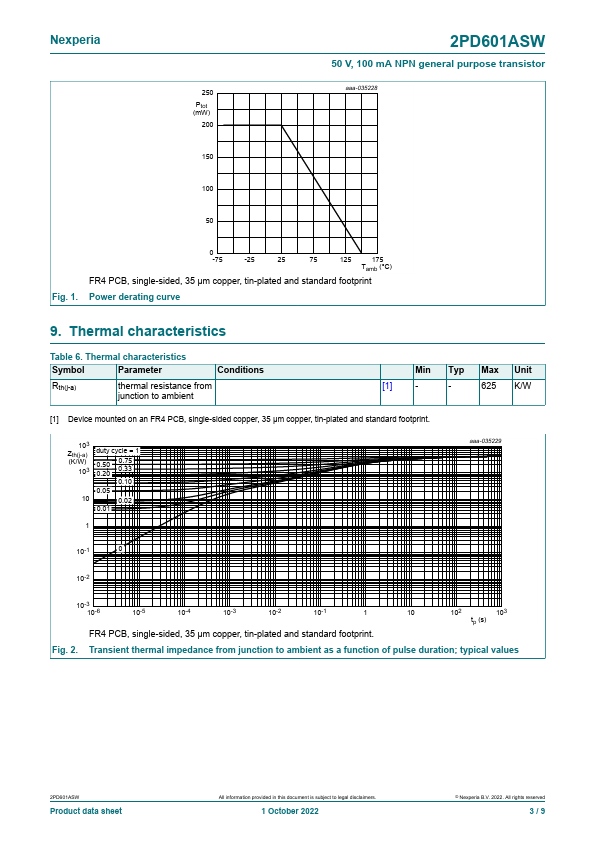

2PD601ASW 50 V, 100 mA NPN general purpose transistor 1 October 2022 Product data sheet 1. General description NPN general purpose transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • General-purpose transistor • Small SMD plastic package 3. Applications • General purpose switching and amplification. 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 10 V; IC = 2 mA; Tamb = 25 °C Min Typ Max Unit - - 50 V - - 290 - 100 mA 460 5. Pinning information Table 2.
