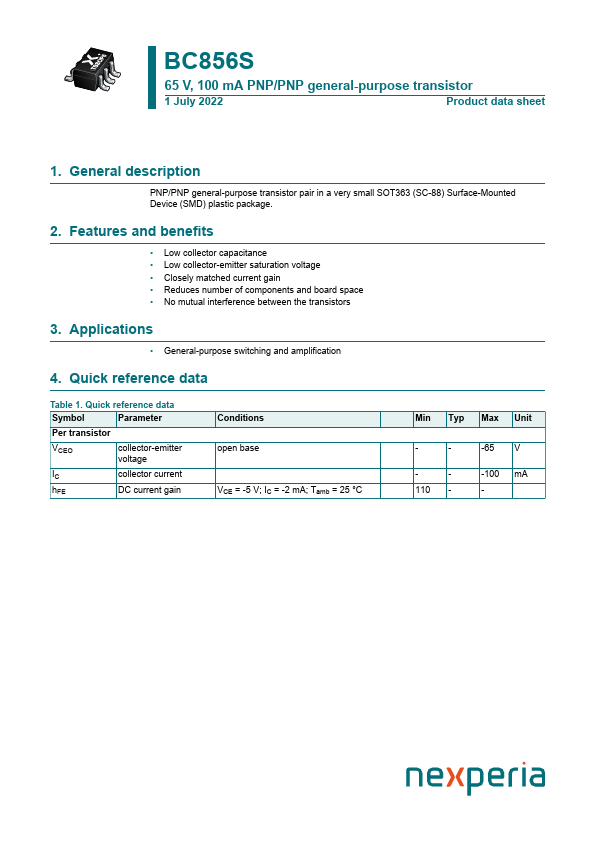

BC856S
BC856S is 65V 100mA PNP/PNP general-purpose transistor manufactured by Nexperia.
65 V, 100 mA PNP/PNP general-purpose transistor
1 July 2022
Product data sheet
1. General description
PNP/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Low collector capacitance
- Low collector-emitter saturation voltage
- Closely matched current gain
- Reduces number of ponents and board space
- No mutual interference between the transistors
3. Applications
- General-purpose switching and amplification
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Per transistor
VCEO collector-emitter voltage
IC collector current hFE
DC current gain
Conditions...
