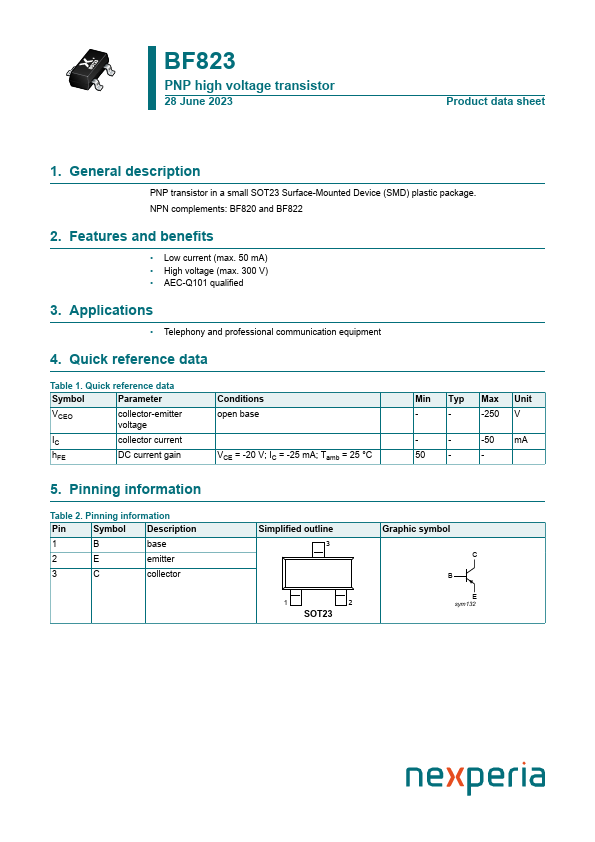

BF823
BF823 is PNP high voltage transistor manufactured by Nexperia.
PNP high voltage transistor
28 June 2023
Product data sheet
1. General description
PNP transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. NPN plements: BF820 and BF822
2. Features and benefits
- Low current (max. 50 mA)
- High voltage (max. 300 V)
- AEC-Q101 qualified
3. Applications
- Telephony and professional munication equipment
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current hFE
DC current gain
Conditions open base
VCE = -20 V; IC = -25 mA; Tamb = 25 °C
Min Typ Max Unit
- -
-250 V
- -
- -50 mA
- 5. Pinning information
Table 2. Pinning...
