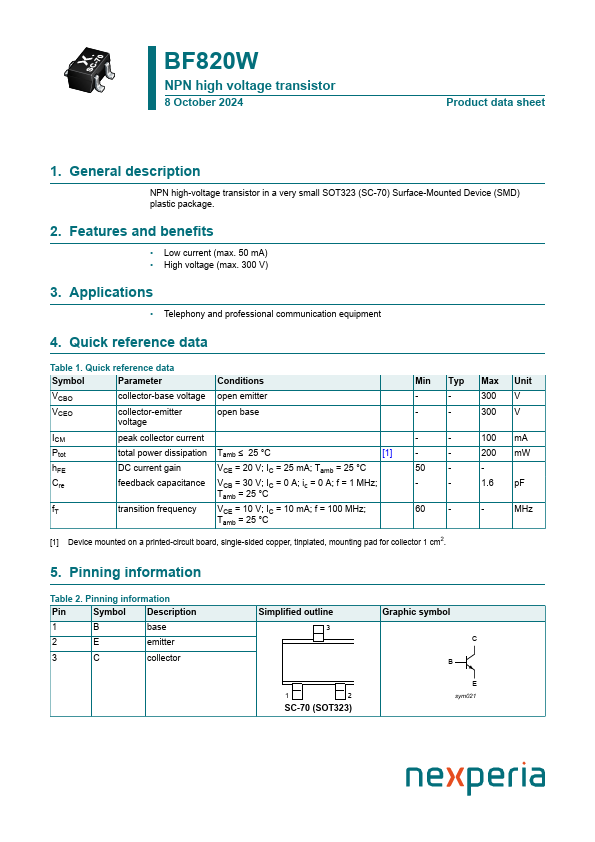

Datasheet Summary
NPN high voltage transistor
8 October 2024
Product data sheet
1. General description
NPN high-voltage transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Low current (max. 50 mA)
- High voltage (max. 300 V)
3. Applications
- Telephony and professional munication equipment
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCBO VCEO collector-base voltage collector-emitter voltage
ICM peak collector current
Ptot total power dissipation hFE
DC current gain
Cre feedback capacitance fT transition frequency
Conditions open emitter open base
Tamb ≤ 25 °C
[1]
VCE = 20 V; IC = 25...
