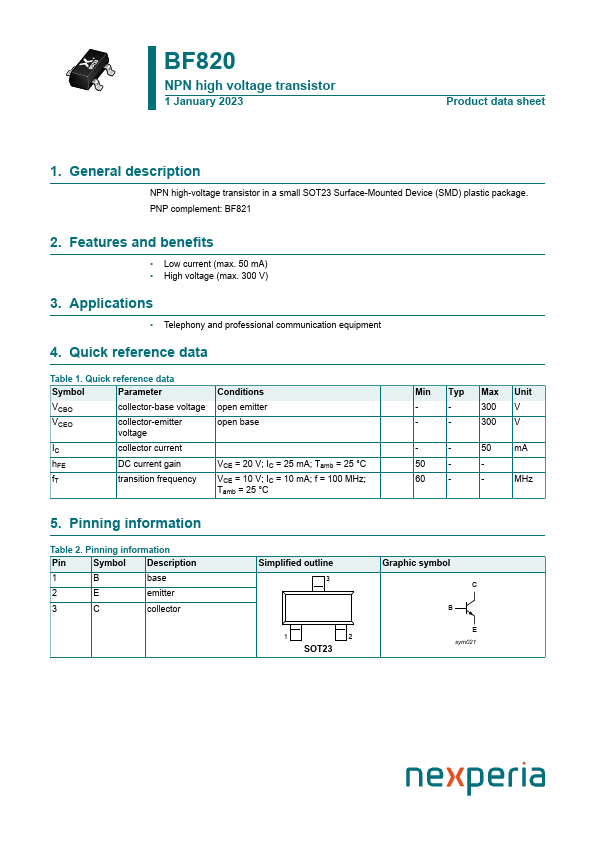

Datasheet Summary
NPN high voltage transistor
1 January 2023
Product data sheet
1. General description
NPN high-voltage transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. PNP plement: BF821
2. Features and benefits
- Low current (max. 50 mA)
- High voltage (max. 300 V)
3. Applications
- Telephony and professional munication equipment
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCBO VCEO collector-base voltage collector-emitter voltage
IC collector current hFE
DC current gain fT transition frequency
Conditions open emitter open base
VCE = 20 V; IC = 25 mA; Tamb = 25 °C VCE = 10 V; IC = 10 mA; f = 100 MHz; Tamb = 25 °C
Min Typ Max...
