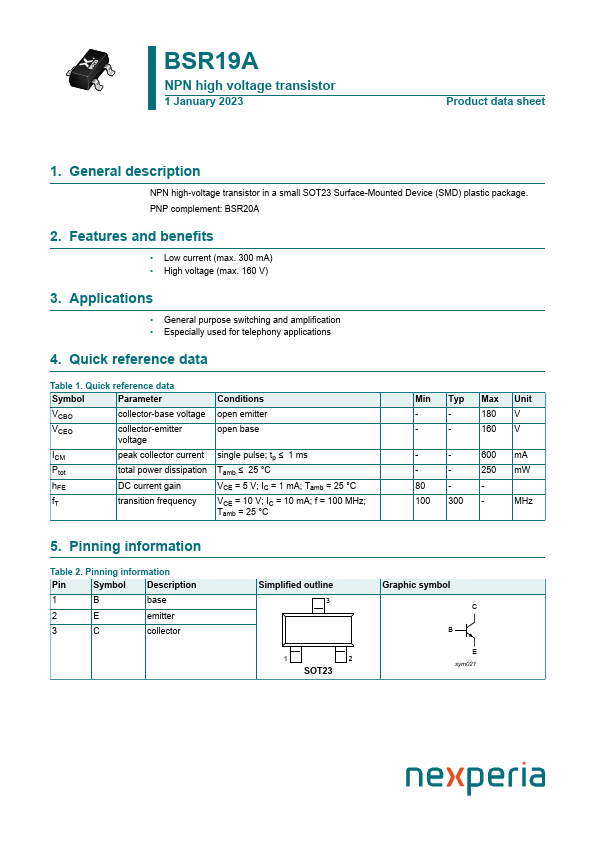

BSR19A
description
NPN high-voltage transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. PNP plement: BSR20A
2. Features and benefits
- Low current (max. 300 m A)
- High voltage (max. 160 V)
3. Applications
- General purpose switching and amplification
- Especially used for telephony applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCBO collector-base voltage
VCEO collector-emitter voltage
ICM peak collector current
Ptot total power dissipation h FE
DC current gain f T transition frequency
Conditions open emitter open base single pulse; tp ≤ 1 ms Tamb ≤ 25 °C VCE = 5 V; IC = 1 m A; Tamb = 25 °C VCE = 10 V; IC = 10 m A; f = 100 MHz; Tamb = 25 °C
Min Typ Max Unit
- -
180 V
- -
160 V
- -
600 m A
- -
250 m W
- -
100 300
- MHz
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
B base
E...
