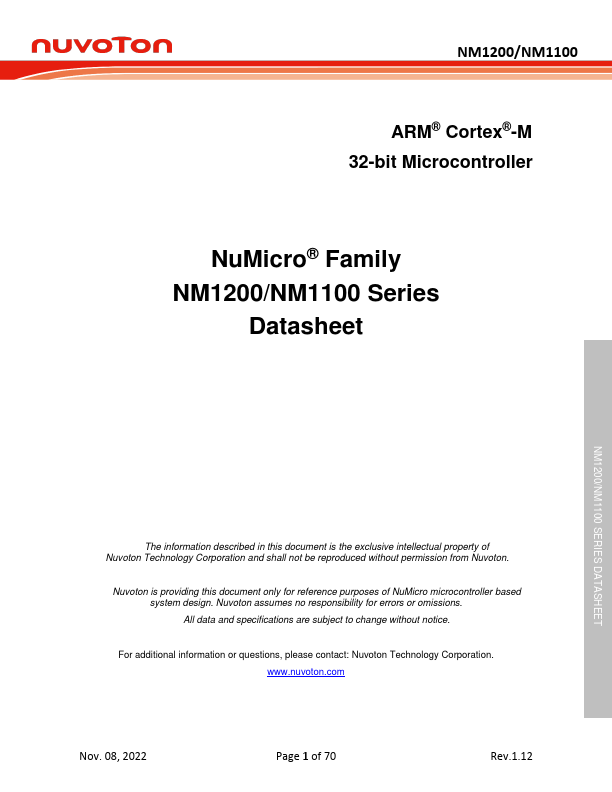

NM1200/NM1100 ARM® Cortex® -M 32-bit Microcontroller Nu Micro® Family NM1200/NM1100 Series NM1200/NM1100 SERIES DATASHEET The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of Nu Micro microcontroller based system design. Nuvoton assumes no responsibility for errors or omissions. All data and specifications are subject to change without notice. For additional information or questions, please contact: Nuvoton Technology Corporation. .nuvoton. Nov. 08, 2022 Page 1 of 70 Rev.1.12 NM1200/NM1100 1 GENERAL DESCRIPTION The Nu Micro® NM1200/NM1100 series 32-bit microcontroller is embedded with ARM® Cortex® M0 core for industrial control and applications which require high performance, high integration, and low cost. The Cortex® -M0 is the newest ARM® embedded processor with 32-bit performance at a cost equivalent to the traditional 8-bit microcontroller. The NM1200/NM1100 series can run up to 48 MHz and operate at 2.1V ~ 5.5V, -40℃ ~ 105℃, and thus can afford to support a variety of industrial control and applications which need high CPU performance. The NM1200/NM1100 series offers 17.5K-bytes embedded program flash, size configurable Data Flash (shared with program flash), 2K-byte flash for the ISP, and 2K-byte SRAM. Many system level peripheral functions, such as I/O Port, Timer, UART, SPI, I2C, PWM, ADC, Watchdog Timer, Analog parator and Brown-out Detector, have been incorporated into the NM1200/NM1100 series in order to reduce ponent count, board space and system cost. These useful functions make the NM1200/NM1100 series powerful for a wide range of applications. Additionally, the NM1200/NM1100 series is equipped with ISP (In-System Programming) and ICP (In-Circuit Programming) functions, which allow the user to update the program memory without removing...
