This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | MMBT5089 |
|---|---|
| Datasheet | MMBT5089 MMBT5088 Datasheet (PDF) |
| File Size | 220.46 KB |
| Manufacturer | onsemi |
| Description | NPN General Purpose Amplifier |
|
|

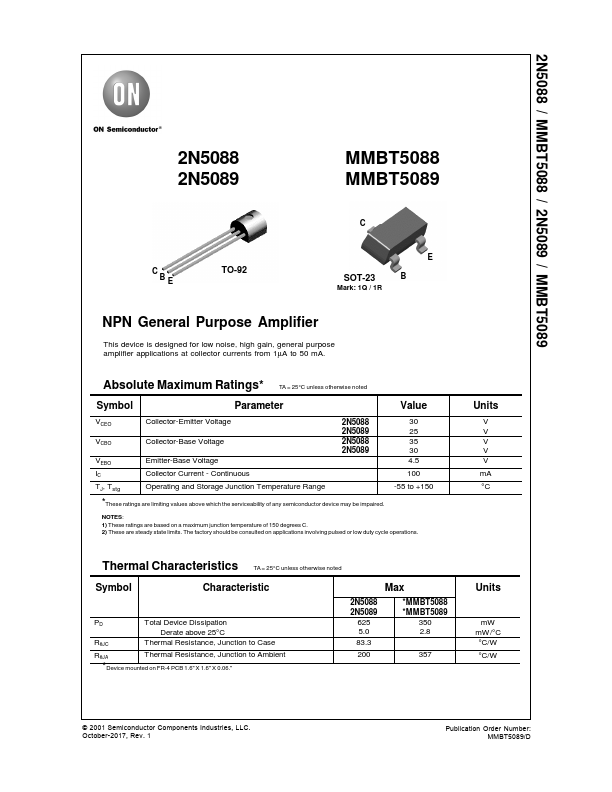

1Q / 1R NPN General Purpose Amplifier This device is designed for low noise, high gain, general purpose amplifier applications at collector currents from 1µA to 50 mA. Ratings TA = 25°C unless otherwise noted Symbol Parameter Value VCEO VCBO VEBO IC TJ, Tstg Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous Operating and Storage Junction Temperature Range 2N5088...
