Datasheet Summary
Document Category: Product Specification
UltraCMOS® RF Digital Step Attenuator, 9 kHz- 45 GHz
Features
- Wideband support from 9 kHz to 45 GHz
- Glitch-safe attenuation state transitions
- Flexible attenuation steps of 0.5 dB and 1 dB up to
31.5 dB

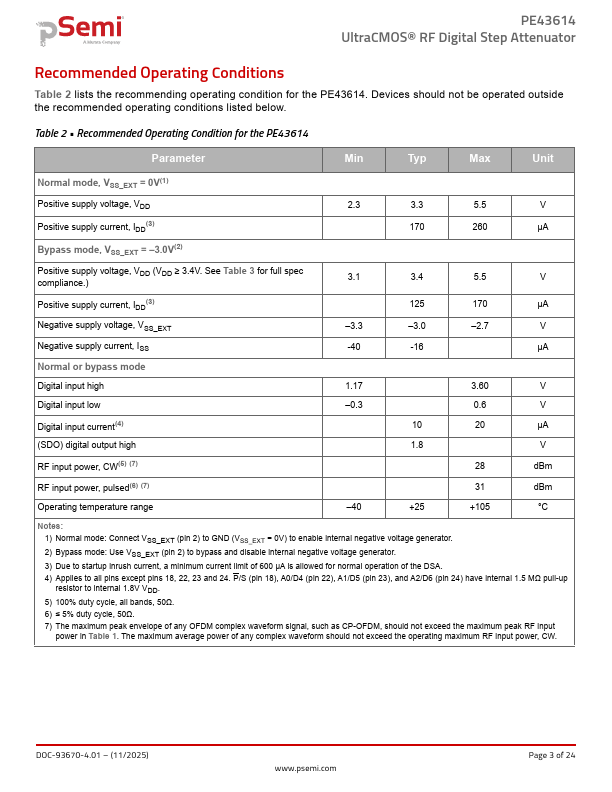

- +105 °C operating temperature
- Parallel and serial programming interfaces with serial addressability

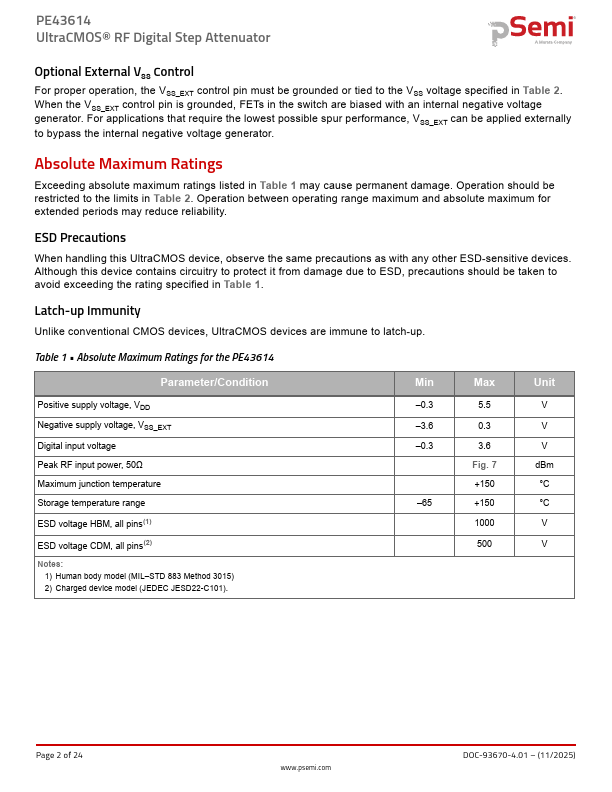

- High HBM ESD of 1 kV
- Packaging
- 24-lead 4 × 4 mm LGA
Applications
- Test and measurement (T&M)
- Point-to-point munication systems
- Very small aperture terminals (VSAT)

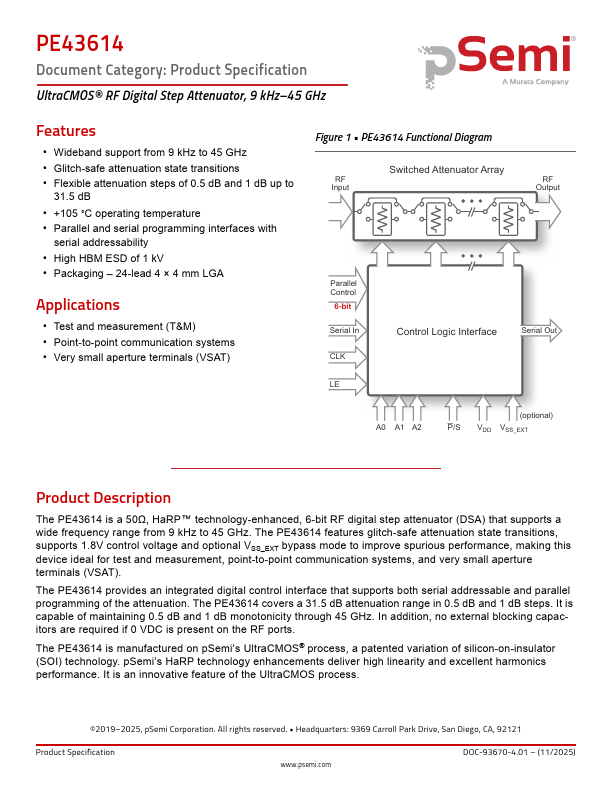

Figure 1
- PE43614 Functional Diagram
Switched Attenuator Array
RF Input
RF Output
Parallel Control
6-bit
Serial In
Control Logic Interface
Serial...
