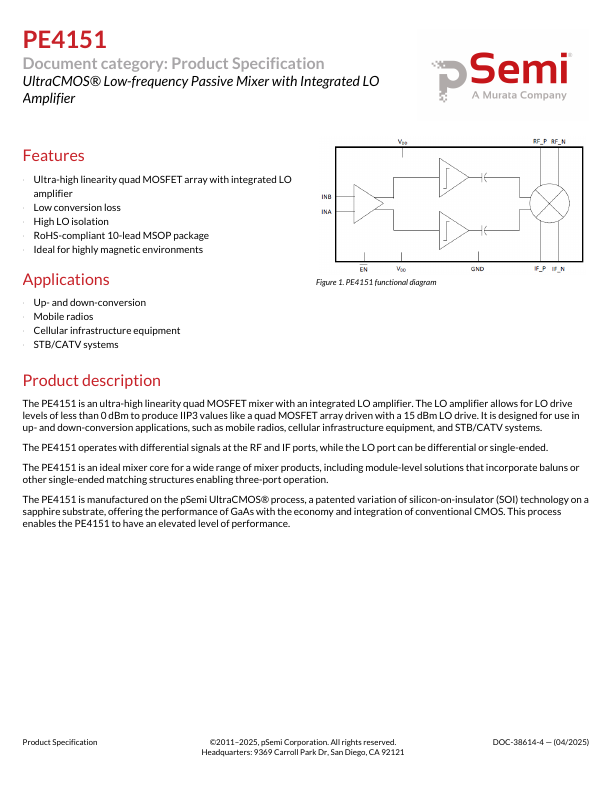

Datasheet Summary
Document category: Product Specification
UltraCMOS® Low-frequency Passive Mixer with Integrated LO Amplifier
Features
- Ultra-high linearity quad MOSFET array with integrated LO amplifier
- Low conversion loss
- High LO isolation
- RoHS-pliant 10-lead MSOP package
- Ideal for highly magnetic environments
Applications
- Up- and down-conversion
- Mobile radios
- Cellular infrastructure equipment
- STB/CATV systems
Figure 1. PE4151 functional diagram
Product description
The PE4151 is an ultra-high linearity quad MOSFET mixer with an integrated LO amplifier. The LO amplifier allows for LO drive levels of less than 0 dBm to produce IIP3 values like a quad MOSFET array driven with a...
