DMN2011UFDE - N-Channel MOSFET

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

General Purpose Interfacing Switch Power Management Functions U-D

Features

  • 0.6mm Profile.
  • Ideal for Low Profile.

📥 Download Datasheet

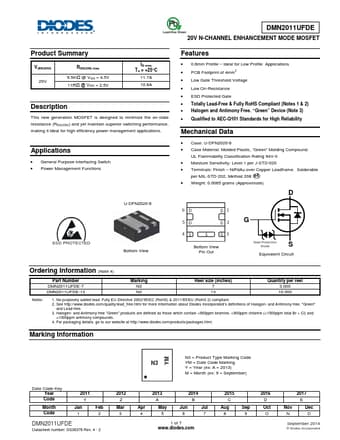

Datasheet preview – DMN2011UFDE

📁 Similar Datasheet

  • DMN2004DWK - DUAL N-CHANNEL ENHANCEMENT MODE MOSFET (Diodes Incorporated)
  • DMN2004K - N-CHANNEL ENHANCEMENT MODE MOSFET (Diodes Incorporated)
  • DMN2004VK - DUAL N-CHANNEL ENHANCEMENT MODE MOSFET (Diodes Incorporated)
  • DMN2004WK - N-Channel MOSFET (Diodes Incorporated)
  • DMN2005K - N-Channel Transistor (Diodes Incorporated)
  • DMN2005LP4K - N-Channel Transistor (Diodes Incorporated)
  • DMN2005LPK - N-Channel Transistor (Diodes Incorporated)
  • DMN2112SN - N-Channel FET (Diodes Incorporated)
  • DMN2114SN - N-Channel Transistor (Diodes Incorporated)
  • DMN21D2UFB - 20V N-CHANNEL MOSFET (Diodes Incorporated)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
ADVAADNVCAENDC IENIFNOFROMRAMTAITOINON Product Summary V(BR)DSS 20V RDS(ON) max 9.5mΩ @ VGS = 4.5V 11mΩ @ VGS = 2.5V ID max TA = +25°C 11.7A 10.8A Description This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications • General Purpose Interfacing Switch • Power Management Functions U-DFN2020-6 DMN2011UFDE 20V N-CHANNEL ENHANCEMENT MODE MOSFET Features • 0.6mm Profile – Ideal for Low Profile Applications • PCB Footprint of 4mm2 • Low Gate Threshold Voltage • Low On-Resistance • ESD Protected Gate • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free.
