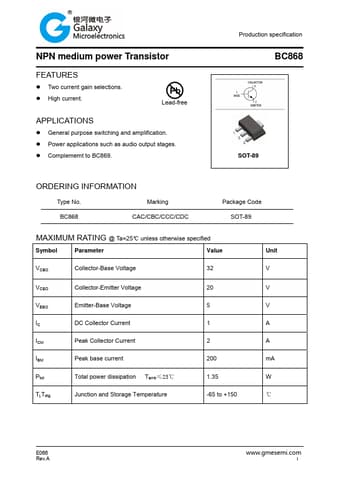

NPN medium power Transistor FEATURES z Two current gain selections. z High current. Pb Lead-free APPLICATIONS z General purpose switching and amplification. z Power appli...
View more extracted text
LICATIONS z General purpose switching and amplification. z Power applications such as audio output stages. z Complememt to BC869. Production specification BC868 SOT-89 ORDERING INFORMATION Type No. Marking BC868 CAC/CBC/CCC/CDC Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 32 VCEO VEBO IC ICM IBM Ptot Tj,Tstg Collector-Emitter Voltage Emitter-Base Voltage DC Collector Current Peak Collector Current Peak base current Total power dissipation Tamb≤25℃ Junction and Storage Temperature 20 5 1 2 200 1.35 -65 to +150 Unit V V V A A mA W ℃ E066 Rev.A www.g
