Description

The G5162 is a high performance AC/DC power supply control device which uses digital control technology to build peak current mode PWM flyback power supplies.

Features

  • while minimizing the external component count, simplifying EMI design, and lowering the total bill of material cost. The G5162 removes the need for secondary feedback circuit while achieving excellent line and load regulation. It also eliminates the need for loop compensation components while maintaining stability in all operating conditions. The built-in power limit function enables optimized transformer design in universal off-line.

📥 Download Datasheet

Datasheet preview – G5162

Datasheet Details

Part number G5162
Manufacturer Global Semiconductor
File Size 352.57 KB
Description DIGITAL-IC
Datasheet download datasheet G5162 Datasheet
Additional preview pages of the G5162 datasheet.

📁 Similar Datasheet

  • G5103 - Micro-power Step-Up DC/DC Converters (Global Mixed-mode Technology)
  • G5108 - Low-Noise Step-up DC-DC Converter (Global Mixed-mode Technology)
  • G510DS - GLASS PASSIVATED RECTIFIERS (Jingdao)
  • G510VS - GLASS PASSIVATED RECTIFIERS (Jingdao)
  • G5110 - 600k/1.2MHz TFT-LCD Step-Up DC-DC Converter (Global Mixed-mode Technology)
  • G5111 - Micro-power Step-Up DC/DC Converters (Global Mixed-mode Technology)
  • G5113 - Micro-power Step-Up DC/DC Converters (Global Mixed-mode Technology)
  • G5120 - 600k/1.2MHz TFT-LCD Step-Up DC-DC Converter (Global Mixed-mode Technology)
  • G5121 - Fixed Frequency White LED Step-Up Converter (Global Mixed-mode Technology)
  • G5125 - Micro-Power Boost DC/DC Converter (Global Mixed-mode Technology)
Other Datasheets by Global Semiconductor
  • G5137P - DIGITAL PWM
  • G5138P - DIGITAL PWM
  • G5138PA - Digital Green-Mode QR Primary-Side PWM Power Switch
  • G5138PE - Digital Green-Mode QR Primary-Side PWM Power Switch
  • G5138PK - Digital Green-Mode QR Primary-Side PWM Power Switch
  • G5138PT - Digital Green-Mode QR Primary-Side PWM Power Switch
  • G5175 - DIGITAL PWM
  • G5176 - DIGITAL PWM

Full PDF Text Transcription

Click to expand full text

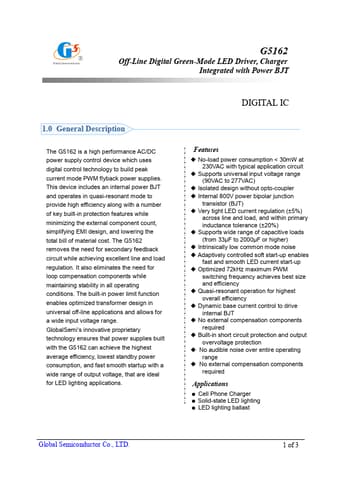

G5162 Off-Line Digital Green-Mode LED Driver, Charger Integrated with Power BJT 1.0 General Description The G5162 is a high performance AC/DC power supply control device which uses digital control technology to build peak current mode PWM flyback power supplies. This device includes an internal power BJT and operates in quasi-resonant mode to provide high efficiency along with a number of key built-in protection features while minimizing the external component count, simplifying EMI design, and lowering the total bill of material cost. The G5162 removes the need for secondary feedback circuit while achieving excellent line and load regulation. It also eliminates the need for loop compensation components while maintaining stability in all operating conditions.
