HL6341MG - (HL6340MG / HL6341MG) Circular Beam Low Operating Current

Download the HL6341MG datasheet PDF (HL6340MG included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (hl6340mg / hl6341mg) circular beam low operating current.

Description

The HL6340MG/41MG are 0.63 µm band AlGaInP laser diodes can be operated with low operating current.

These products were designed by self aligned refractive index (SRI) active layer structure.

Features

  • Optical output power : 5 mW CW Single longitudinal mode Visible light power : 635 nm Typ Low operating current : 25 mA Typ Low aspect ratio : 1.2 Typ Operating temperature : +50°C TM mode oscillation Package Type.
  • HL6340MG/41MG: MG Internal Circuit.
  • HL6340MG 1 3 Internal Circuit.
  • HL6341MG 1 3 PD LD PD LD 2 2 HL6340MG/41MG Absolute Maximum Ratings (TC = 25°C) Item Optical output power Pulse op.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HL6340MG_Hitachi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • HL6342G - (HL6339G / HL6342G) 633nm Lasing Laser Diode (Hitachi Semiconductor)
  • HL63101MG - AlGaInP Laser Diode (USHIO)
  • HL63102MG - AlGaInP Laser Diode (USHIO)
  • HL6312G - (HL6312G / HL6313G) AlGaInP Laser Diodes (Hitachi Semiconductor)
  • HL6313G - (HL6312G / HL6313G) AlGaInP Laser Diodes (Hitachi Semiconductor)
  • HL6314MG - AlGaInP Laser Diode (Hitachi Semiconductor)
  • HL63290HD - AlGaInP Laser Diode (USHIO)
  • HL6339G - (HL6339G / HL6342G) 633nm Lasing Laser Diode (Hitachi Semiconductor)
  • HL601 - INFRARED EMITTING DIODES (KODENSHI)
  • HL602 - INFRARED EMITTING DIODE (KODENSHI KOREA)
Other Datasheets by Hitachi
  • HL6340MG - (HL6340MG / HL6341MG) Circular Beam Low Operating Current
  • HL6323MG - AlGaInP Laser Diode
  • HL6331G - (HL6332G) Low Operating Current Visible Laser Diode
  • HL6333MG - (HL6334MG) Low Operating Current Visible Laser Diode
  • HL6335G - (HL6336G) Circular Beam Low Operating Current
  • HL6339G - (HL6342G) 633nm Lasing Laser Diode
  • HL6503MG - Visible High Power Laser Diode for DVD-RAM
  • HL6714G - AlGaInP Laser Diode

Full PDF Text Transcription

Click to expand full text

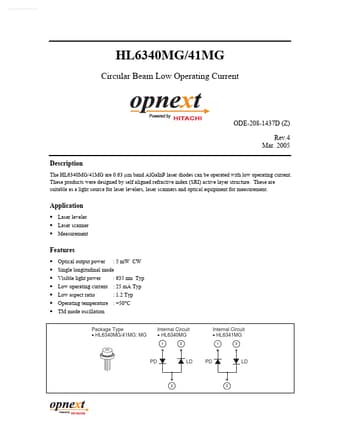

www.DataSheet4U.com HL6340MG/41MG Circular Beam Low Operating Current ODE-208-1437D (Z) Rev.4 Mar. 2005 Description The HL6340MG/41MG are 0.63 µm band AlGaInP laser diodes can be operated with low operating current. These products were designed by self aligned refractive index (SRI) active layer structure. These are suitable as a light source for laser levelers, laser scanners and optical equipment for measurement. Application • Laser leveler • Laser scanner • Measurement Features • • • • • • • Optical output power : 5 mW CW Single longitudinal mode Visible light power : 635 nm Typ Low operating current : 25 mA Typ Low aspect ratio : 1.
