MX1118AS, High Precision CC/CV Primary-Side Power Switch

MX1118AS SOP8，Halogen-free，RoHS Package dissipation rating Package RθJA（℃/W） SOP8 90 Note: Drain Pin Connected to 200mm2 PCB copper clad. Absolute maximum ratings Parameter Value Drain Voltage (off state) 650 VDD Voltage 30V FB Input Voltage -0.3 to 7V CS Input Voltage -0.3 to 7V .

MX1118AS-MAXINMICRO.pdf

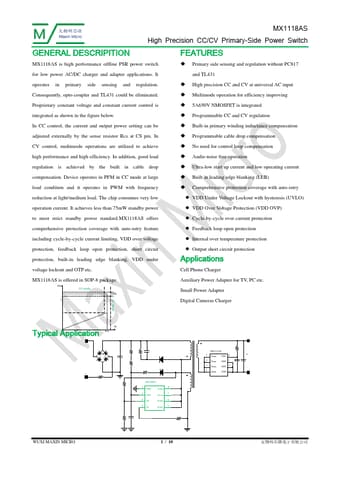

MX1118AS Datasheet Preview — Preview of MX1118AS PDF

Datasheet Details

Part number:

MX1118AS

Manufacturer:

MAXINMICRO

File Size:

553.64 KB

Description:

High Precision CC/CV Primary-Side Power Switch

MX1118AS Features

* MX1118AS is high performance offline PSR power switch

* Primary side sensing and regulation without PC817 for low power AC/DC charger and adapter applications. It and TL431 operates in primary side sensing and regulation.

* High precision CC and CV at universal AC input Consequently,
